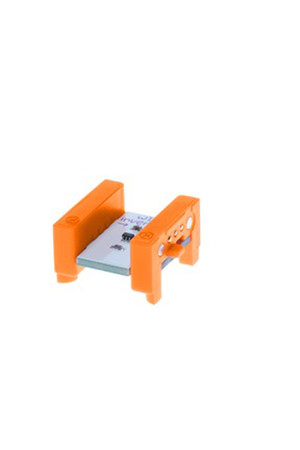

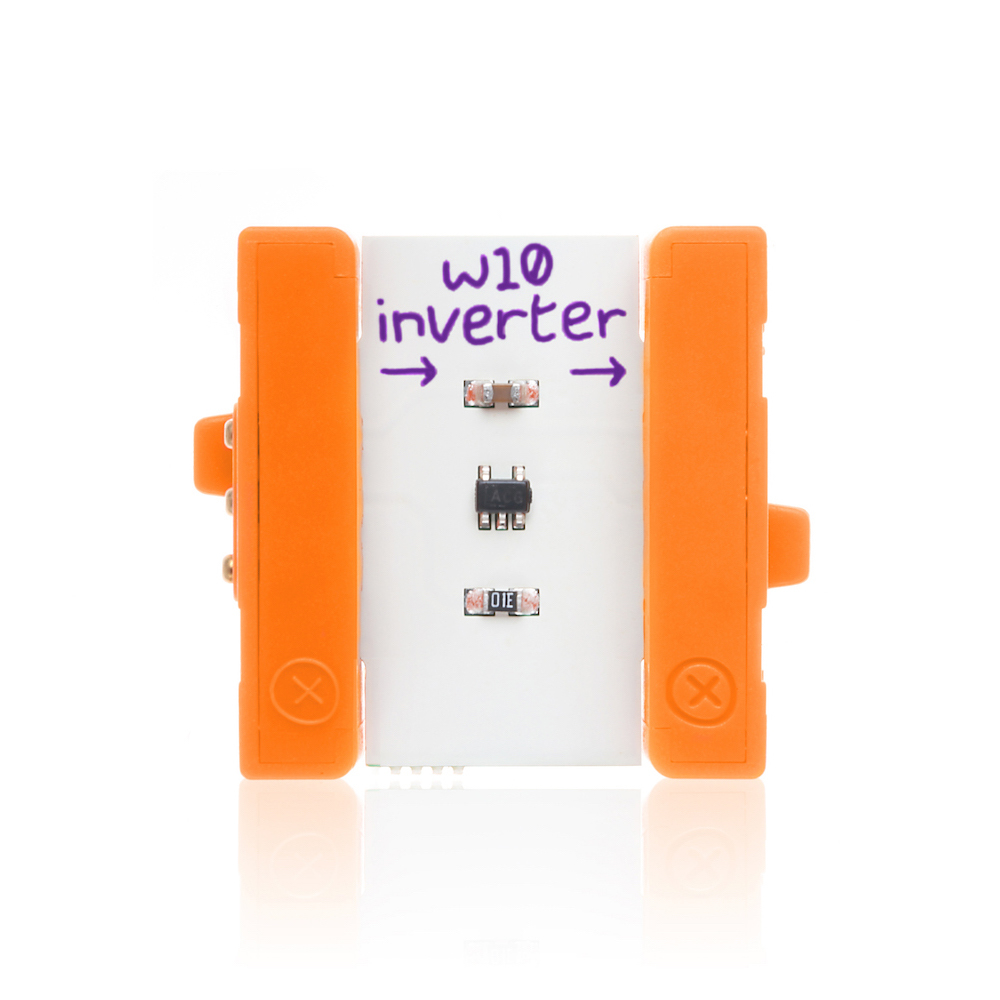

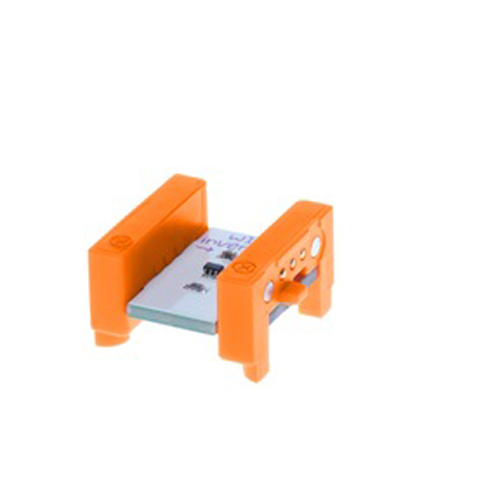

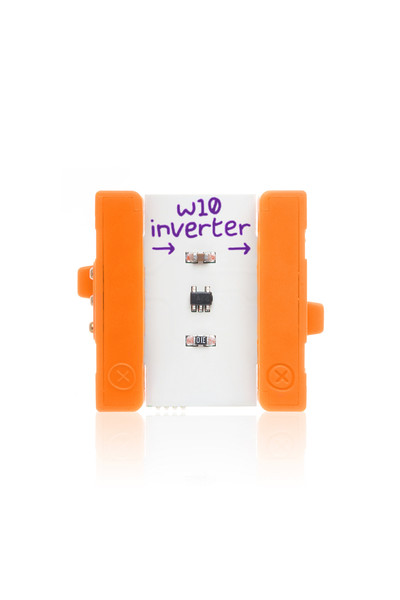

The inverter is an example of a logic Bit. It sends out the opposite of whatever it receives: send it an on signal, and the inverter changes it to an off signal, or vice versa.

Availability: Available Usually Dispatched In: 1 - 2 Business Days Product Code: LB-650-0080 ISBN: 859477003515 Brand/Publisher: littleBits Categories: Engineering & Design, Circuitry, STEM & STEAM, Design Technologies, Science,

Part of the series littleBits Wire Bits.

View all products in this series

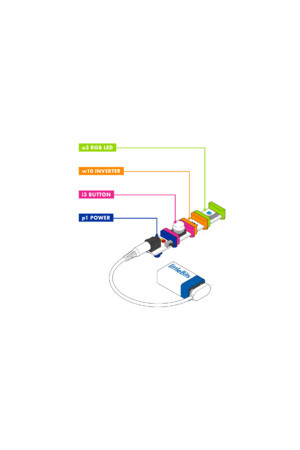

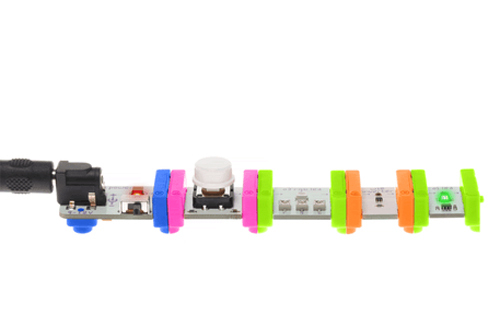

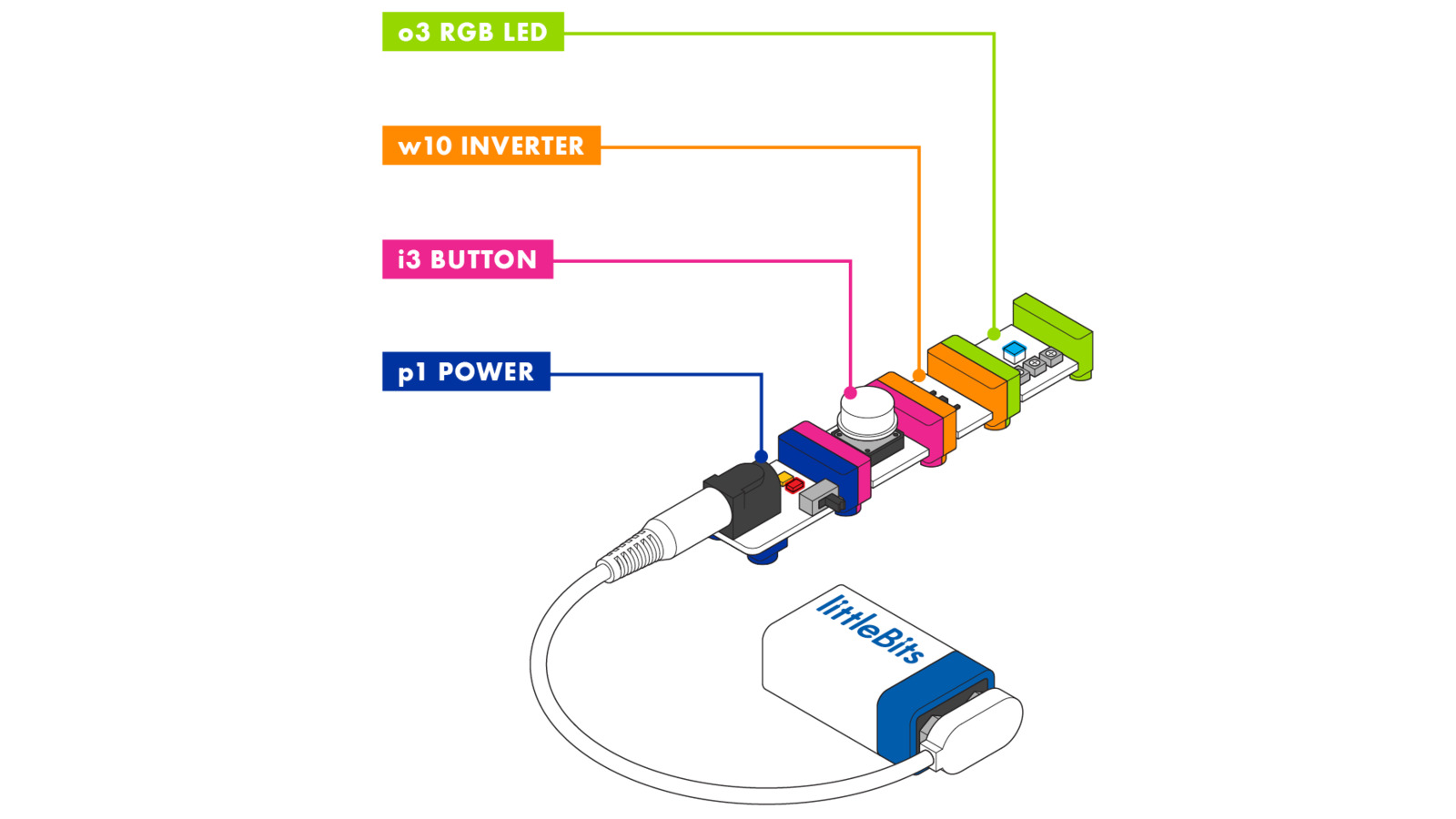

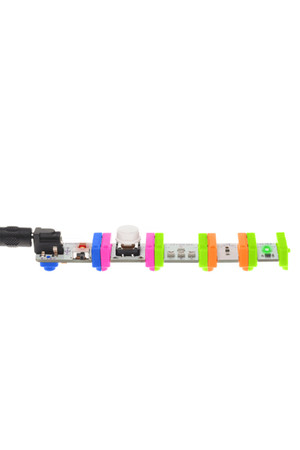

The inverter is an example of a logic Bit. It sends out the opposite of whatever it receives: send it an on signal, and the inverter changes it to an off signal, or vice versa. Would you like a button that turns things off instead of on? Try the inverter.

How it Works

The inverter sends out the opposite of whatever it receives: send it an ON signal, and the inverter changes it to an OFF signal, or vice versa. Anytime the inverter receives a signal lower than 50% power (2.5 volts) the inverter sends full power (5 volts) to the next Bit in the circuit. If the inverter receives a signal greater than 2.5 volts, the inverter sends 0 volts to the next Bit in the circuit.

SKU	LB-650-0080
ISBN	859477003515
Publisher	littleBits
Product Type	Technology, Maths & Science Equipment,
Year Level	Year 3, Year 4, Year 5, Year 6, Year 7, Year 8,
