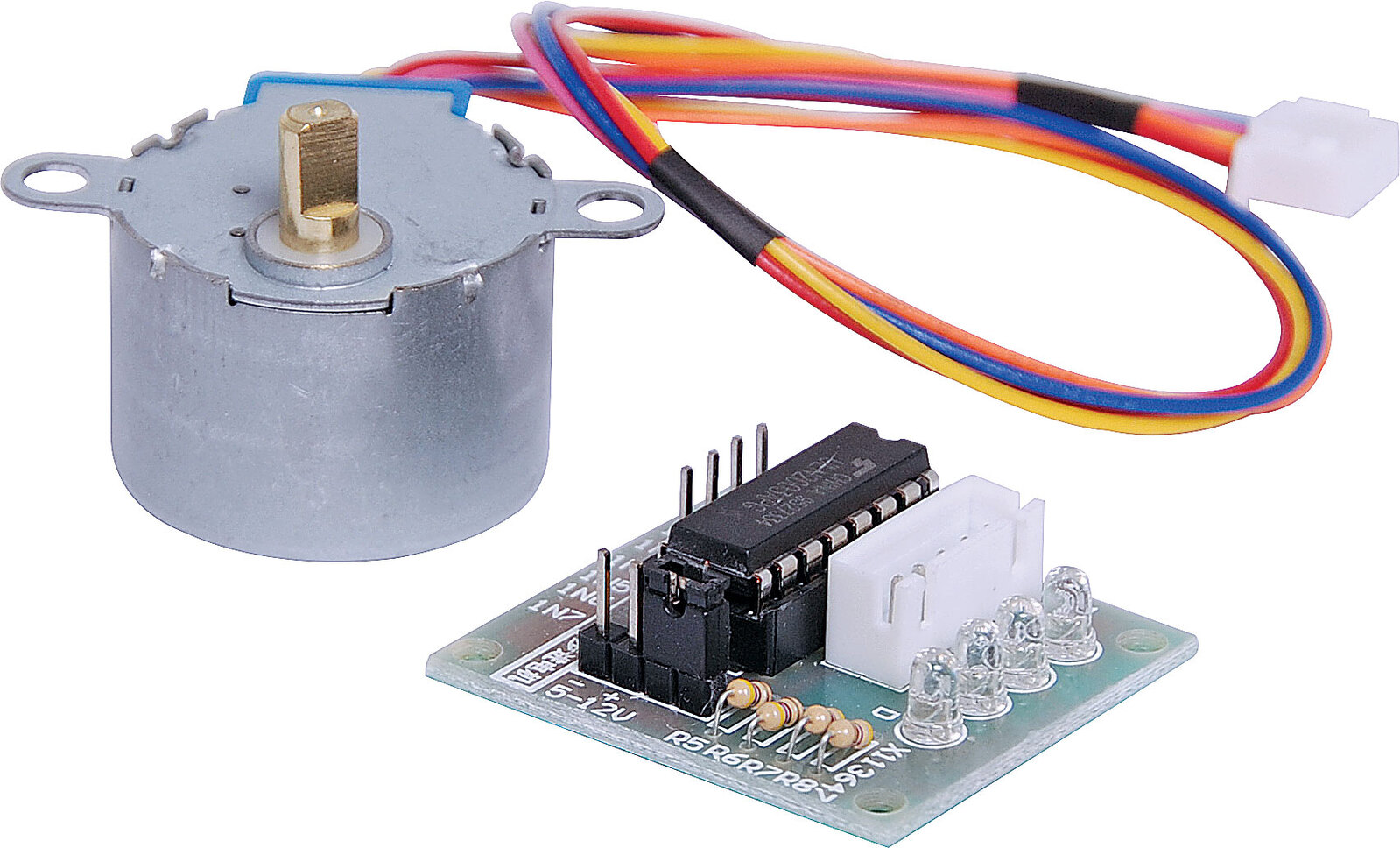

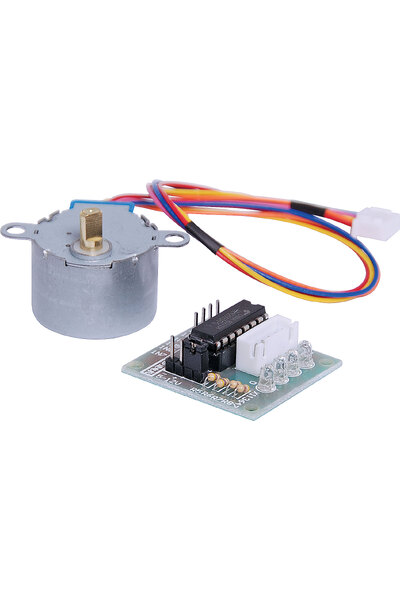

5V 64-step 4-phase Stepper motor with ULN2003 interface board specifically for interfacing with Arduino based projects.
A, B, C, D four-phase LED indicates the status of the stepper motor work
Dimensions of Board : 31 × 35mm
ULN2003 Darlington using high-power stepper motor driver chip
Features
- The rotation angle of the motor is proportional to the input pulse.
- The motor has full torque at standstill(if the windings are energized)
- Precise positioning and repeatability of movement since good stepper motors have an accuracy of – 5% of a step and this error is non cumulative from one step to the next.
- Excellent response to starting/stopping/reversing.
- Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.
- The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
- It is possible to achieve very low speed synchronous rotation with a load that is directly coupled to the shaft.
- A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
Specifications
- Rated voltage: 5VDC
- Number of Phase : 4
- Speed Variation Ratio : 1/64
- Stride Angle : 5.625° /64
- Frequency : 100Hz
- DC resistance: 50Ω±7%(25℃)
- Idle In-traction Frequency: > 600Hz
- Idle Out-traction Frequency: > 1000Hz
- In-traction Torque: >34.3mN.m(120Hz)
- Self-positioning Torque: >34.3mN.m
- Friction torque: 600-1200 gf.cm
- Pull in torque: 300 gf.cm
- Insulated resistance: >10MΩ(500V)
- Insulated electricity power : 600VAC/1mA/1s
- Insulation grade: A
- Rise in Temperature: <40K(120Hz)
- Noise: <35dB(120Hz,No load,10cm)
*Specifications are subject to change without notice.
Downloads
DatasheetSKU | ALT-Z6330 |
ISBN | 9321758169650 |
Publisher | Altronics |
Product Type | Technology, |
