Dynalink HDMI Over IP Extender Cat5e/6 Receiver

Part of the series HDMI Extenders.

View all products in this series

---

HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 150m between transmitter and receiver via a Cat5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920x1200@ 60Hz YCbCr 4:4:4. It also supports HDMI loop output on transmitter.

HDMI over IP Extender requires two units: Transmitter and Receiver (sold separately).

The Transmitter (A3138A - see accessories listed below) is responsible for obtaining HDMI signals for encoding, transmitting via CAT 5e / 6 cables. It supports HDMI loop output.

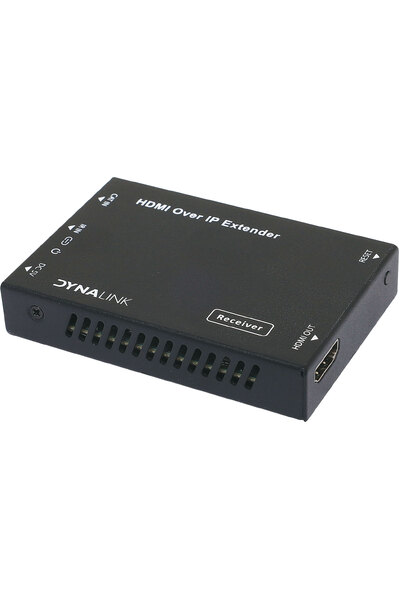

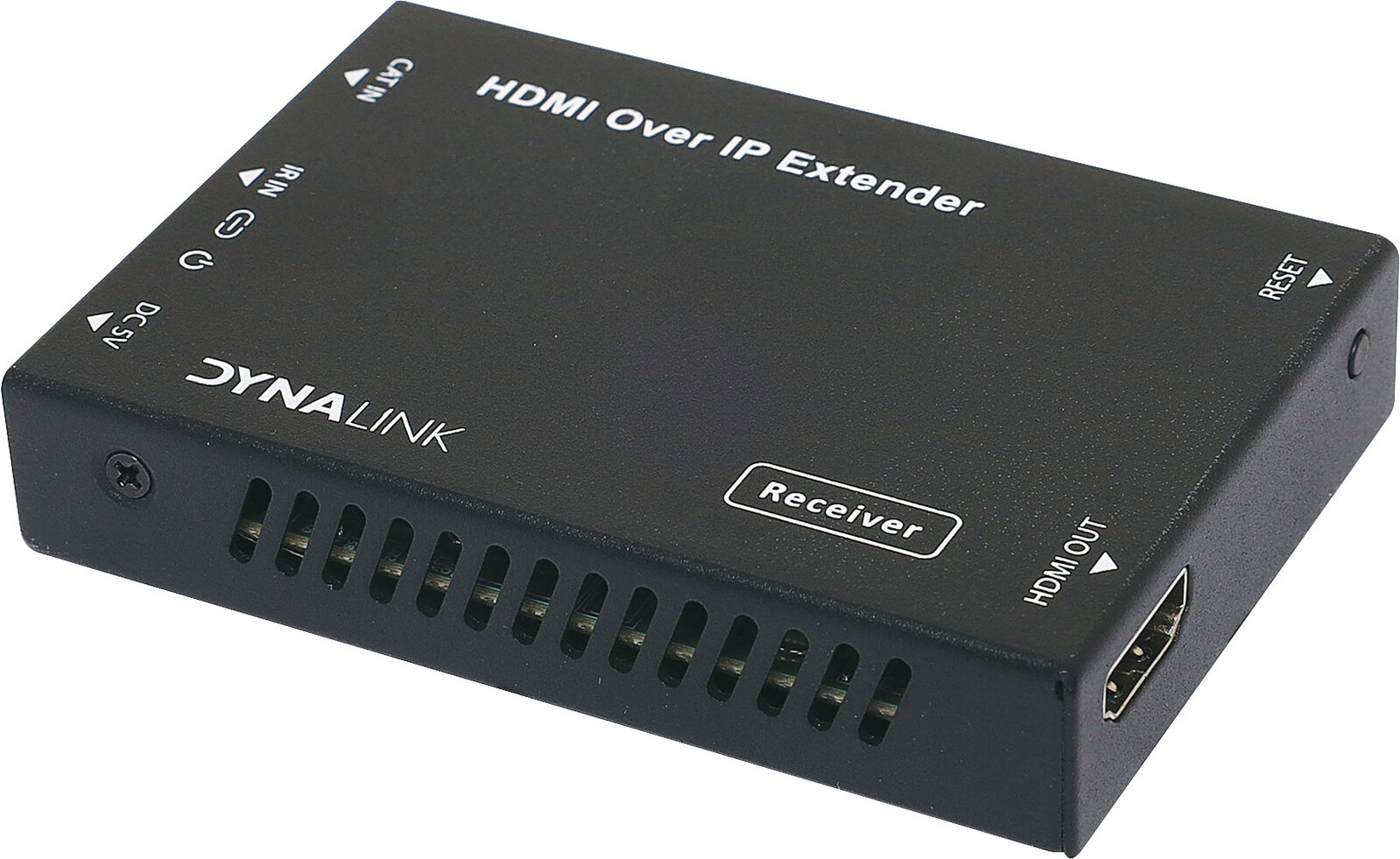

The Receiver (A3139A) is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single Cat5e/6 cable and is the perfect solution for any application.

Box Contents
1x HDMI over IP Extender (Receiver)
1x IR Blaster cable (1.5m)
1x 5V/1A Power Adapters
1x User Manual

Features

• HDCP 1.4 complaint
• Supports 6.75Gbps video bandwidth
• Video resolution is up to 1920x1200@60Hz YCbCr 4:4:4
• Extend distance up to 150m between encoder and decoder via Cat5e/6 cable
• Adopts Standard H.265 encoding/decoding
• Supports 1G standard IP switcher / router / hub
• Supports one-way IR control signal transmission
• Compact design for easy and flexible installation

Specifications

• Technical
• HDCP Compliance: HDCP 1.4
• Video Bandwidth: 6.75Gbps
• Video Resolution: 640x480@60Hz ~1920x1200@60Hz
• HDMI Audio Formats: LPCM 2.0CH, 32KHz, 44.1KHz, 48KHz
• IR Frequency: 20Hz ~ 60KHz
• Compression Technology: H.265
• Request for Switcher/Router: Support 1 GMP, Support DHCP
• Colour Space: RGB YCbCr 4:4:4, YCbCr 4:2:2
• Colour Depth: 12-bit
• ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact Discharge)
• Connection

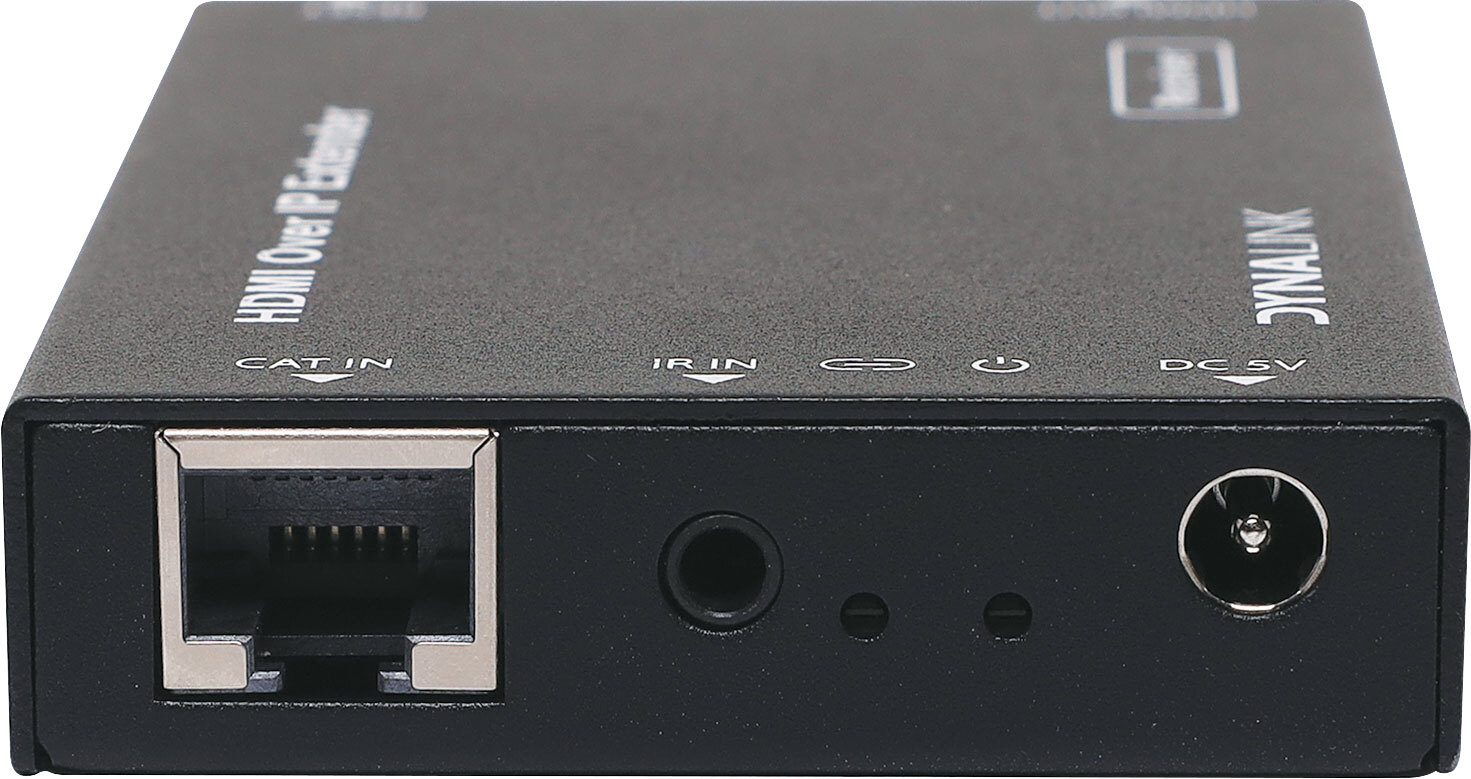

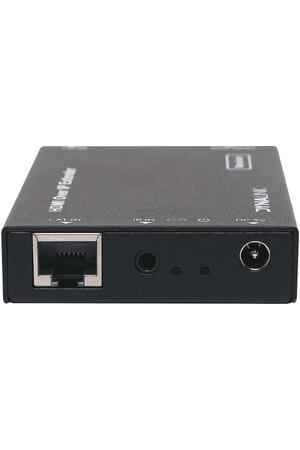

• Inputs: 1x CAT IN (RJ45 connector)

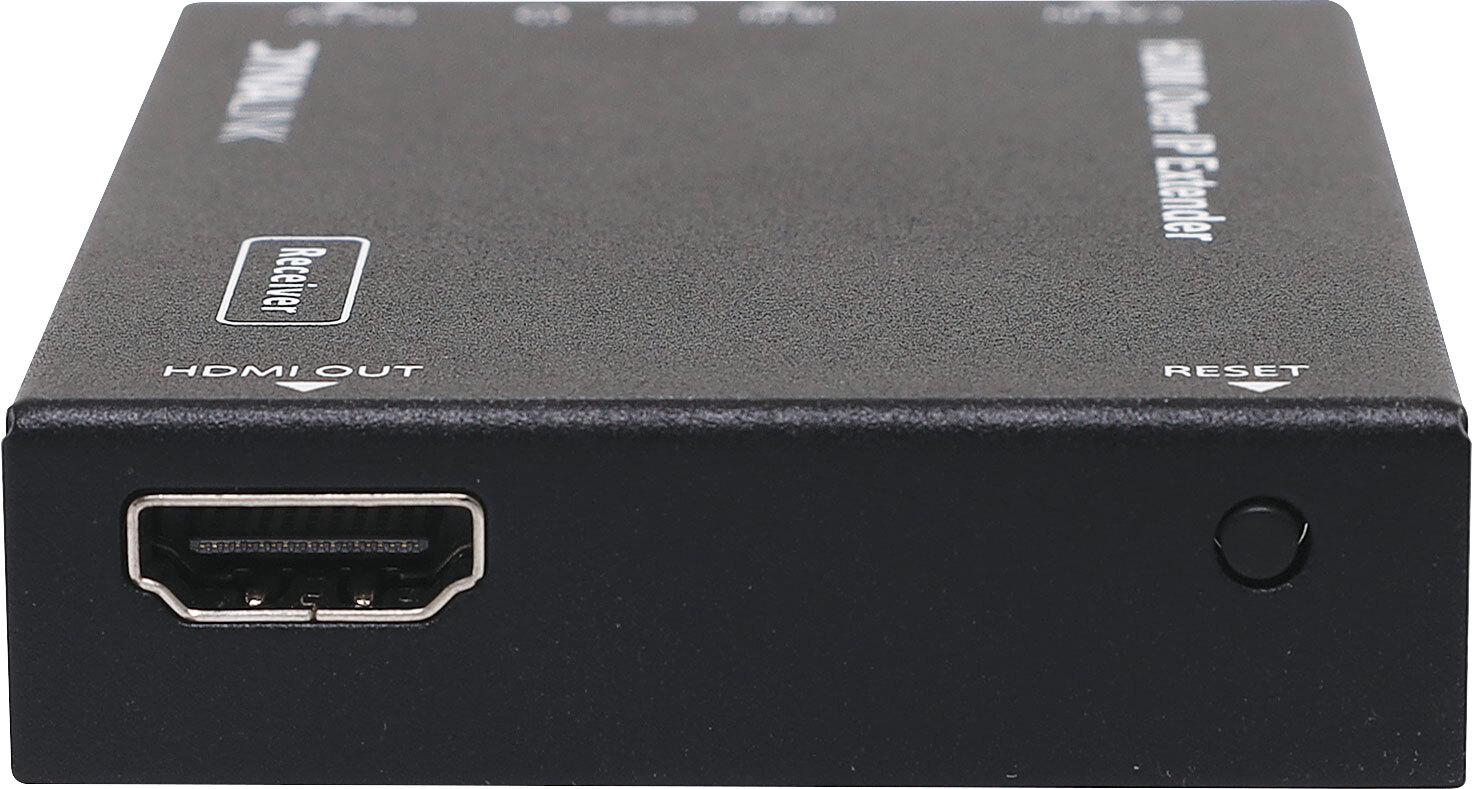

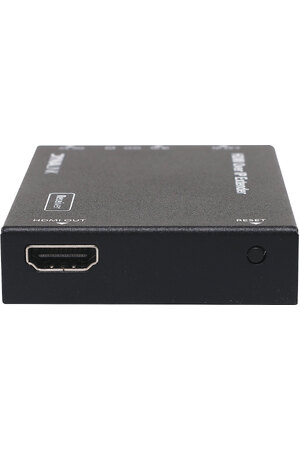

• Outputs: 1x HDMI Type A (19-pin female)
• Control: 1 x IR IN (3.5mm stereo mini-jack)
• Mechanical
• Housing: Metal Enclosure
• Silkscreen Colour: Black
• Dimensions: 88W x 61.2D x 16.5Hmm
• Weight: 155g
• Power Supply: Input: AC100 -240V 50/60Hz, Output: DC 5V/1A (US/EU standard, CE/FCC/UL certified)
• Power consumption: Encoder: 1.5W, Decoder: 1.25W
• Operation Temperature: -10°C ~ +50°C
• Storage Temperature: -20°C ~ +60°C
• Relative Humidity: 20~90% RH (non-condensing)
• Resolution/Distance 1920x1200@60Hz
• CAT 5e/6 cable: 150m
•
• Resolution/Cable Length 1920x1200@60Hz
• HDMI IN/OUT: 15m

*Specifications are subject to change without notice.
