Dynalink 30m Active Optical (AOC) High Speed HDMI Cable with Ethernet

Part of the series HDMI Cables.

View all products in this series

---

Cutting edge Active Optical Cable (AOC) HDMI technology supporting 4K @ 60Hz resolutions at longer lengths than copper cable can achieve. 32 channels of audio. 18Gbits/s TMDS bandwidth up to full length.

This is a HDMI active optical cable designed for long-distance AV distribution that demands highest signal integrality. The cable is thinner, lighter and more flexible than copper cable supporting 4K@60Hz (4:4:4) up to 100m. This AOC cable is no need external power supply.

Care should be taken when installing this optical cable to ensure that it is not run in tight bends (less than 2cm diameter) and that the cable does not knot. The cable should not be bent 180 degrees. Doing so will break the internal optical fibre core and render the cable inoperable. We do not provide warranty on cables which have been installed incorrectly. We suggest checking the cable connectivity between equipment prior to installation.

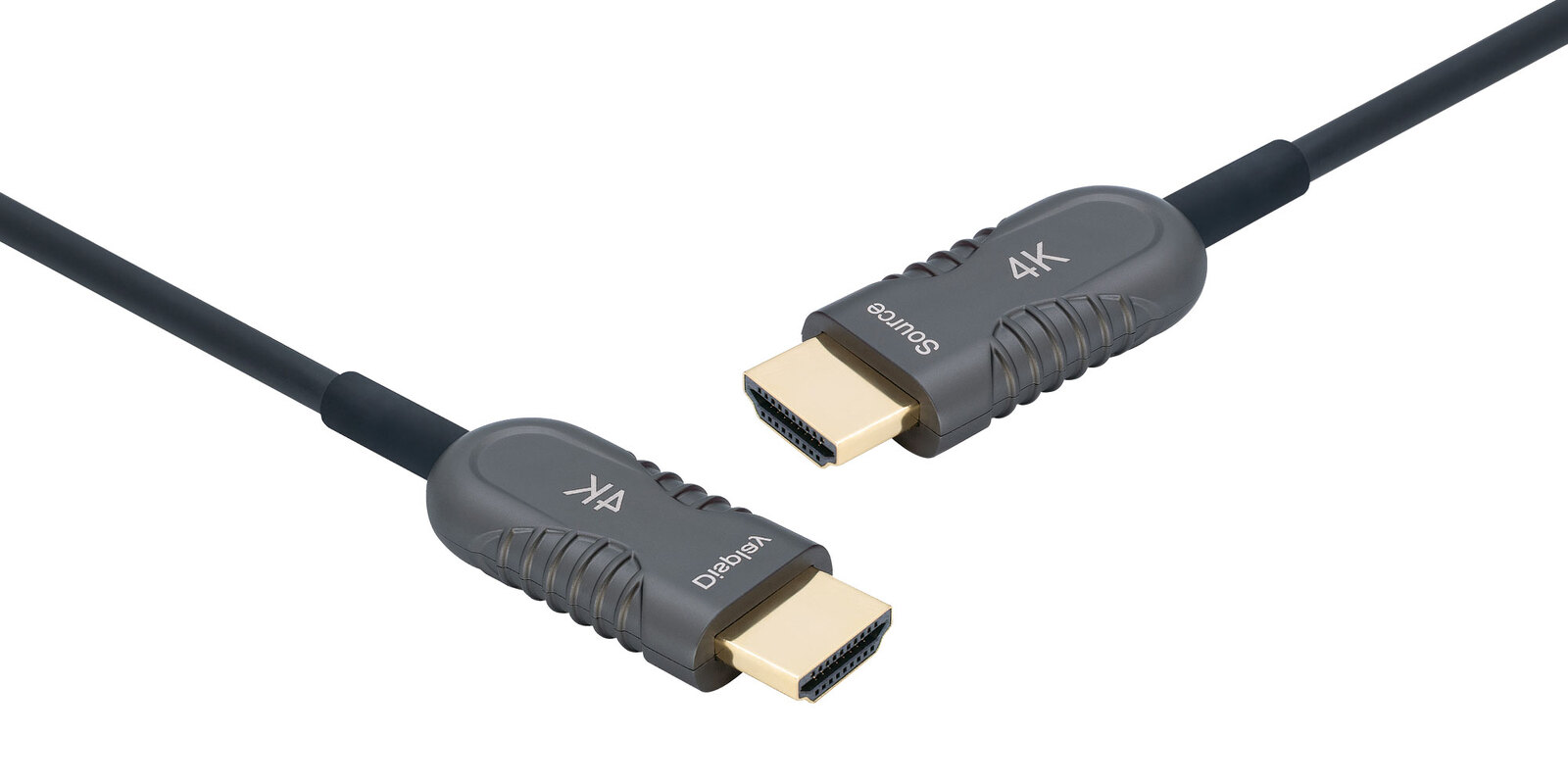

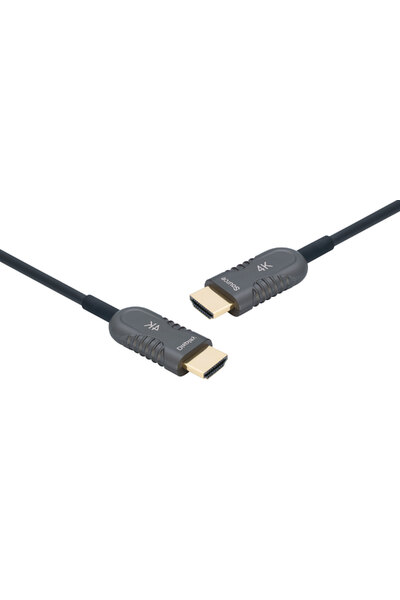

Please Note: This cable is directional. The plug labelled "DISPLAY" must be plugged into the TV Monitor input and the other plug labelled "SOURCE" must be plugged into the media source output.

Features

• 4K/UHD - Video resolution up to 18G 4K@60 4:4:4.
• HDMI and HDCP 2.2 Compliant.
• HDR 10 (High Dynamic Range) - More life-like images through a greater range of luminance levels.
• Varied Selection of Lengths - Available in models from 10 to 100m.
• Zero Compression - Zero compression and zero latency.
• Multi-channel Audio Extension - Up to 32 channels of uncompressed digital stereo signals for studio-grade surround sound.
• EDID Pass Thru- Pass EDID signals from the display to source.
• EMI & RFI Immunity.
• No External Power Supply Needed.
• Easy to Use - Simple to install, plug and play

What is AOC HDMI?
Active Optical Cable HDMI does exactly the same thing as a standard HDMI cable, with one major difference which is very important for installers. AOC cables allow lossless signal transfer over far greater distances than copper HDMI cables and even HDMI UTP baluns!

Normal copper HDMI cables start to lose bandwidth at lengths of 7.5m or more, steadily reducing the quality and even maximum resolution of the cable until eventually at 20m they reach their maximum distance. AOC HDMI cables use an optical fibre (much like S/PDIF audio) which can be run over distances up to 100m at full 4K @ 60Hz video and lossless digital audio.

Specifications

• Inputs: 1 x HDMI (Type A 19-pin male)
• Outputs: 1 x HDMI (Type A 19-pin male)
• Compliance Standards: HDMI (4K@60Hz Chroma sub-sampling 4:4:4 24bpp), HDCP 2.2
• Maximum Resolution Support: 4K@60Hz 4:4:4 8-bit
• Maximum Pixel Clock: 594MHz
• Maximum Data Rate: 18Gbps (6Gbps per graphic channel)
• Audio Format: 2ch LPCM | Multichannel: LPCM, up to DTS-X, Dolby Atmos
• Latency: Zero
• Cable Structure: Hybrid optical fiber cable with copper wire
• Fiber Optic: Multi-mode fiber
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 70°C
• Humidity: 10% to 90%, non-condensing
• Cable Diameter: 4.8mm
• Product Supply: No need external power
• Power Consumption (MAX): 0.45W
• Net Weight:1000g for 30m

*Specifications are subject to change without notice.
