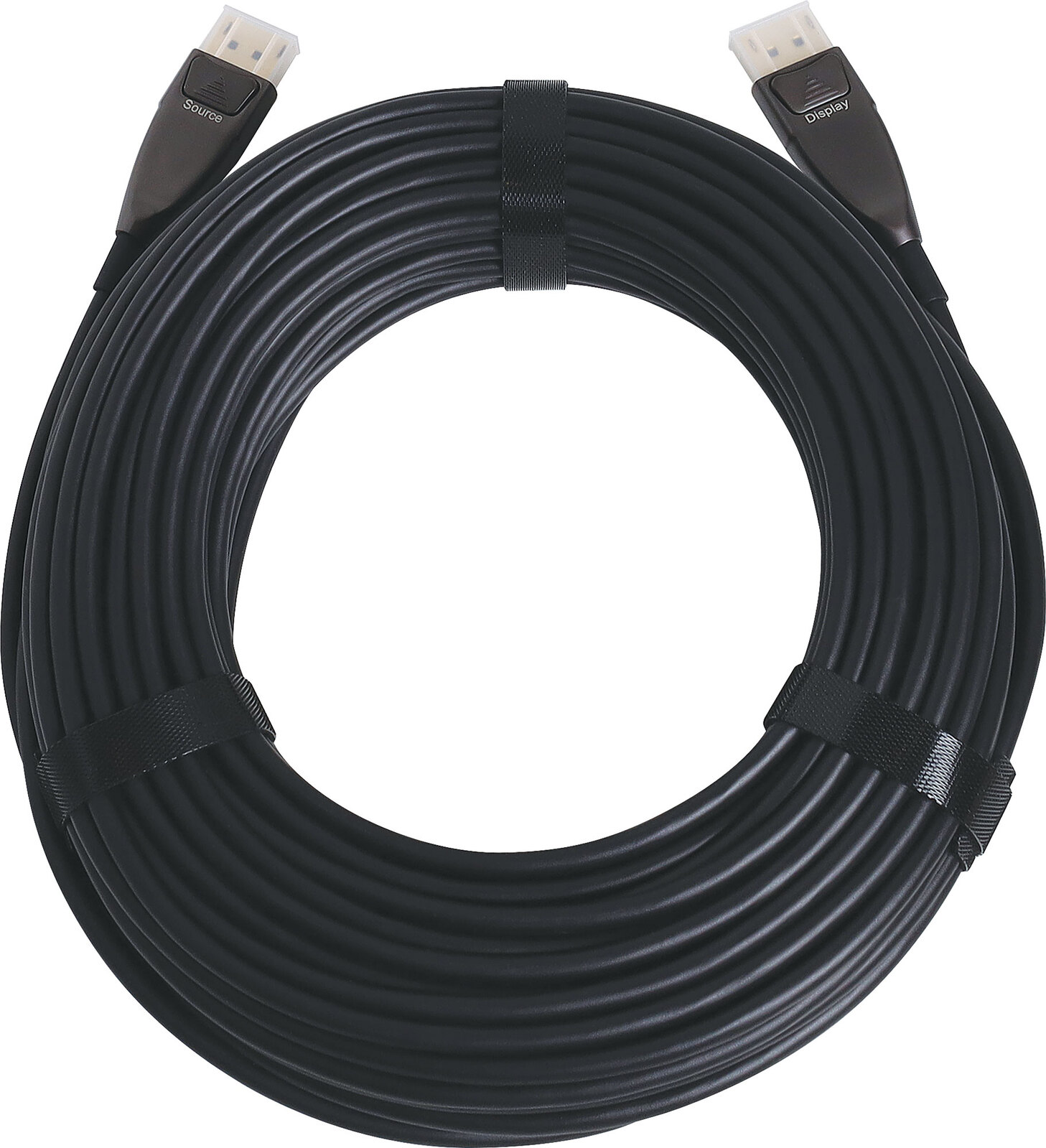

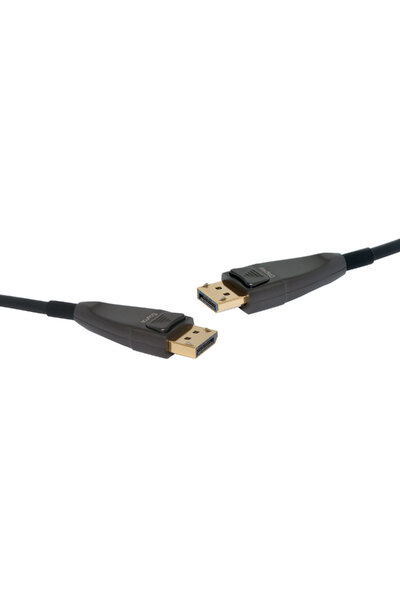

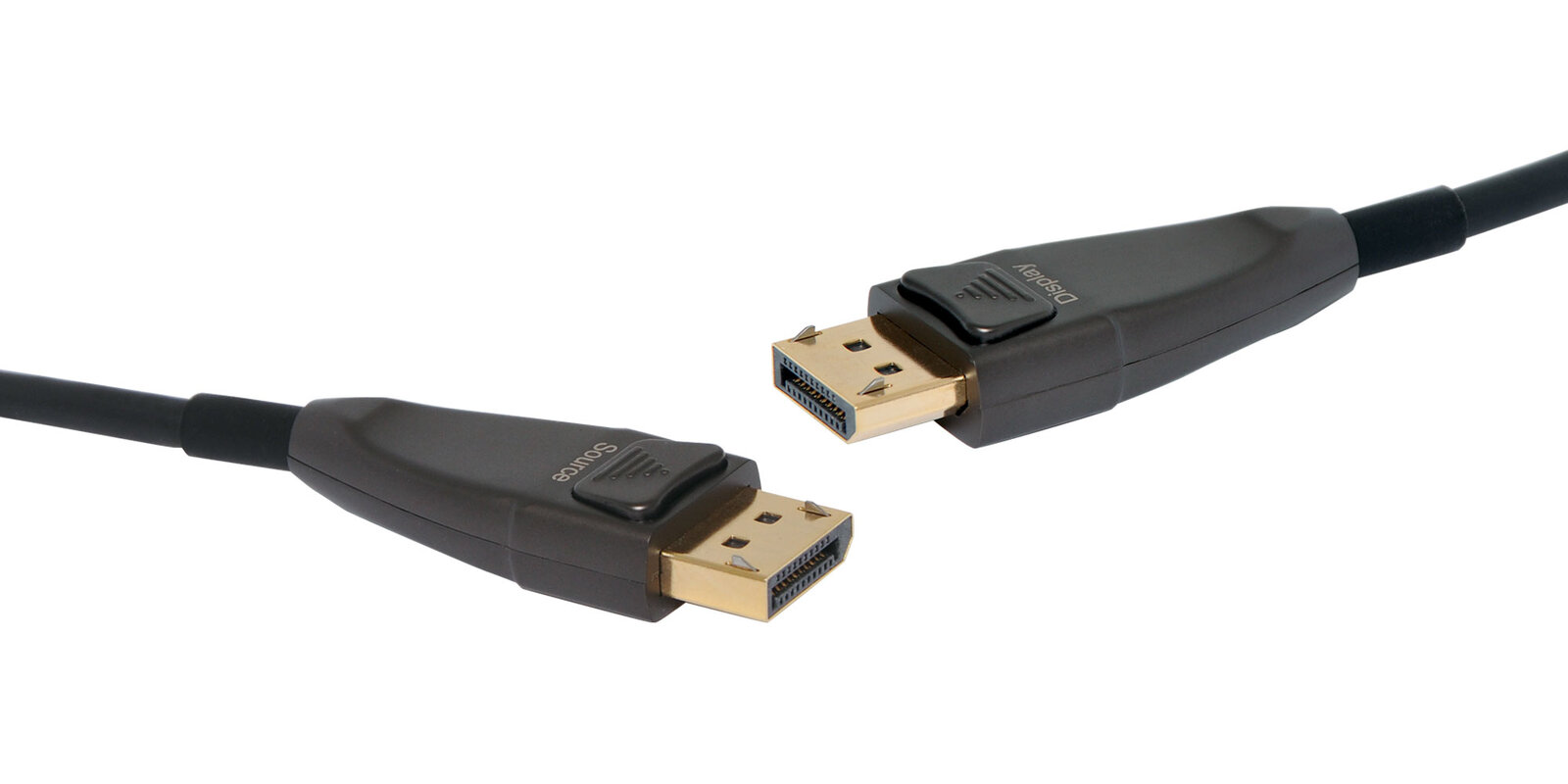

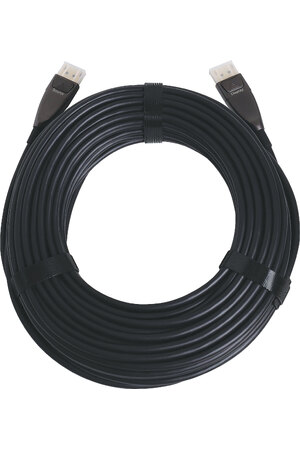

Dynalink 20m Optical DisplayPort Male to Male Lead

Part of the series DisplayPort Cables.

View all products in this series

---

This range of Optical DisplayPort male to male leads have been constructed and designed using hybrid fibre and copper cable to ensure high-definition performance. Used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. DisplayPort was designed to replace VGA, FPD-Link, and Digital Visual Interface (DVI). This range supports 8K resolution at 60Hz and due to its slimline plug it will suit a 25mm conduit.

Please Note: This cable is directional (Source - Display).

Features

• Supports 8K @ 60Hz
• 32Gbps Bandwidth total
• DisplayPort 1.4 Compliant
• HDCP 2.2 Compliant
• Hybrid fibre and copper cable
• Slimline plug suits 25mm conduit

Specifications

• Performance
• Standards Compliance: DisplayPort 1.4/HBR3, HDCP 1.4/2.2
• Maximum Pixel Clock Frequency: 810MHz
• Maximum Video Bit Rate: Supports up to 8.1Gbps per lane, 32.4Gbps total
• Maximum Colour Depth: 48bits
• Maximum Supported Resolutions: 8K @ 60Hz
• Connections
• DisplayPort Input/Output: 20 Pin DisplayPort
• Power: No external power supply is required
• AUX Channel Support
• AUX Channel Communications: Supports bi-directional communications for EDID, HDCP, Link Training etc
• HDCP Support: HDCP 1.4 and HDCP 2.2
• Optical
• Optical Technology: 4 x discreet optical channels, 10GHz, 850nm
• Optical Transmitter: 4 x 850nm multi-mode VCSELs
• Optical Receiver: 4 x GaAs PIN photo diodes
• Cable
• Fiber Cable Jacket: Hybrid cable 4 x fiber and 8 x copper wire
• Cable Jacket: PVC, Black
• Cable Length: 20m
• Mechanical - Cable
• Maximum Tensile Load: 300N
• Minimum Bend Radius: 48mm
• Cable Diameter: 4.8mm (outside)
• Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to +85°C
• Operating/Storage Humidity: 5% to 80% (non condensing)
• Power Requirements
• Power Source: Powered from DisplayPort source device
• Power Consumption: <0.5W each end

*Specifications are subject to change without notice.
