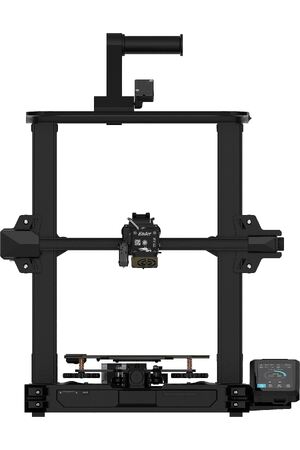

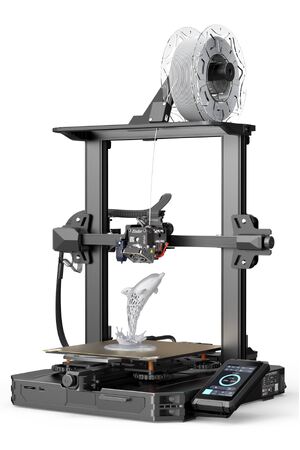

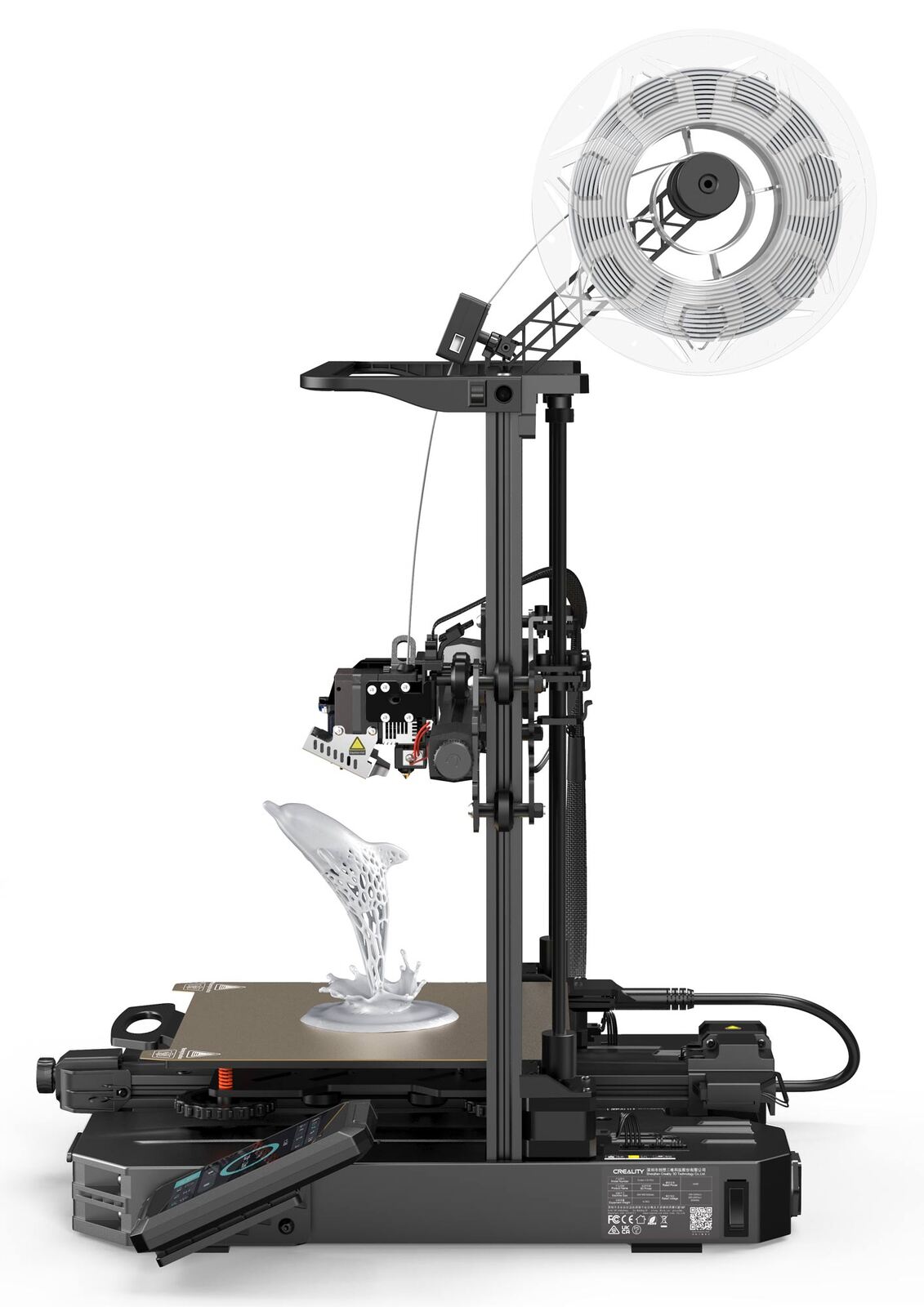

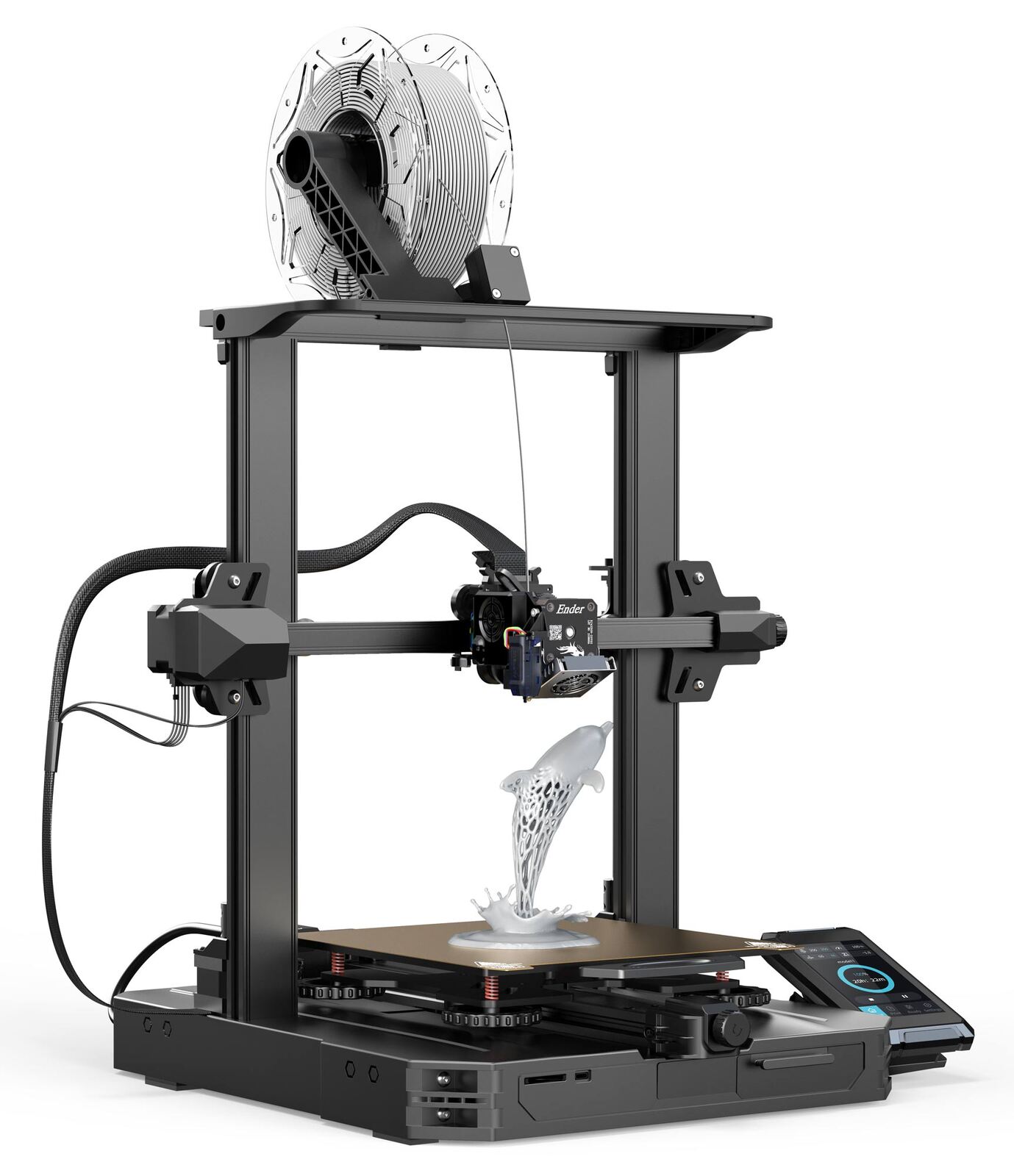

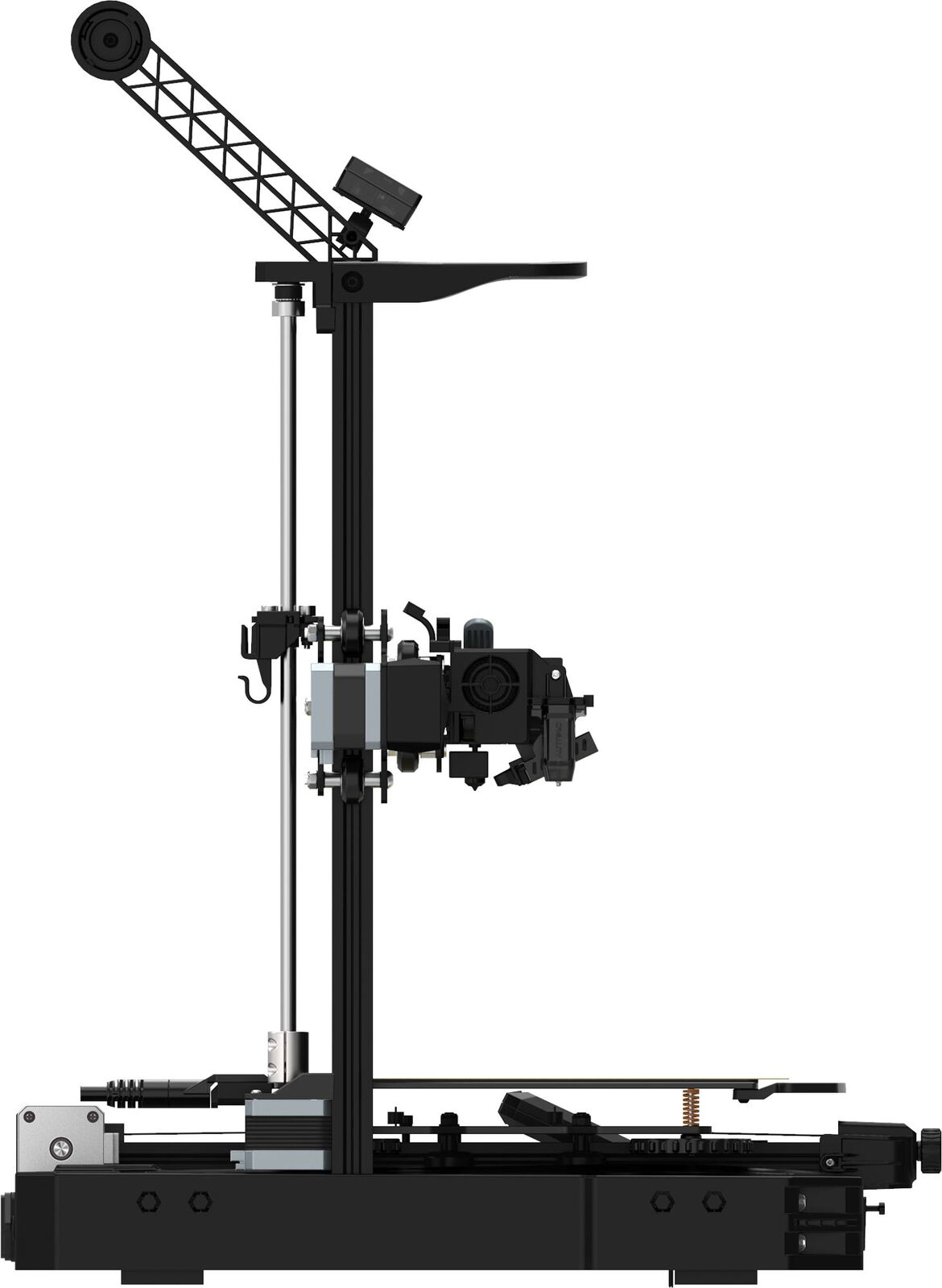

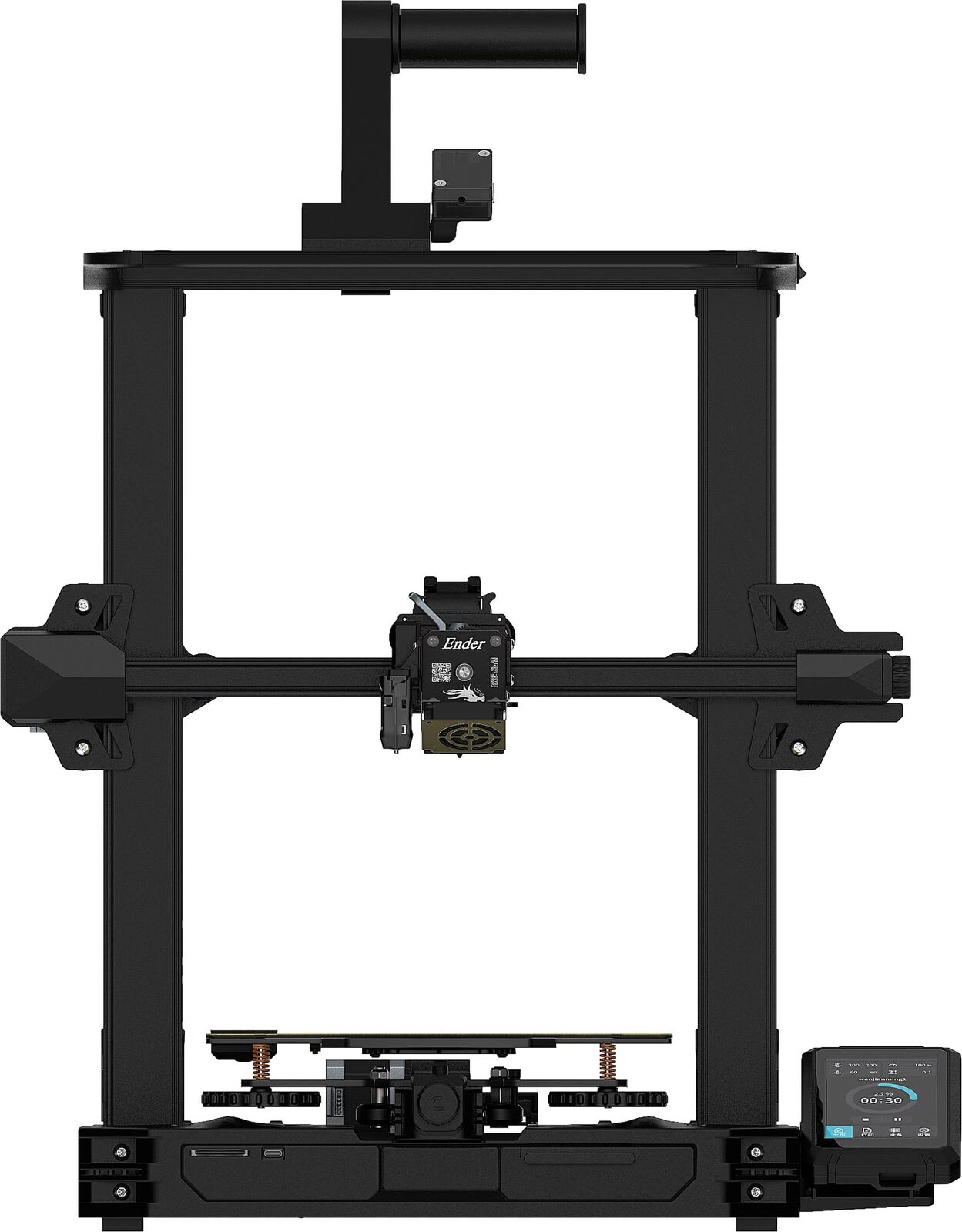

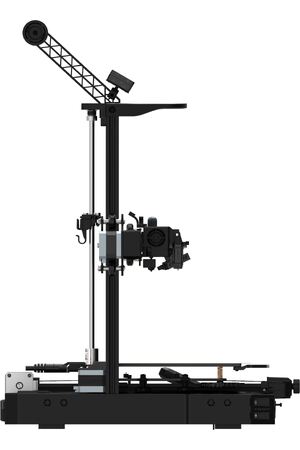

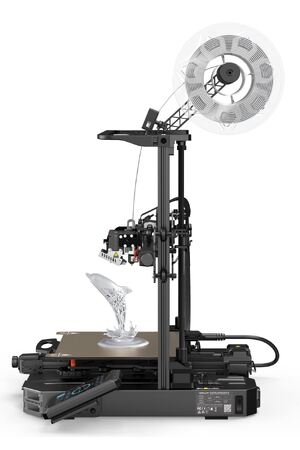

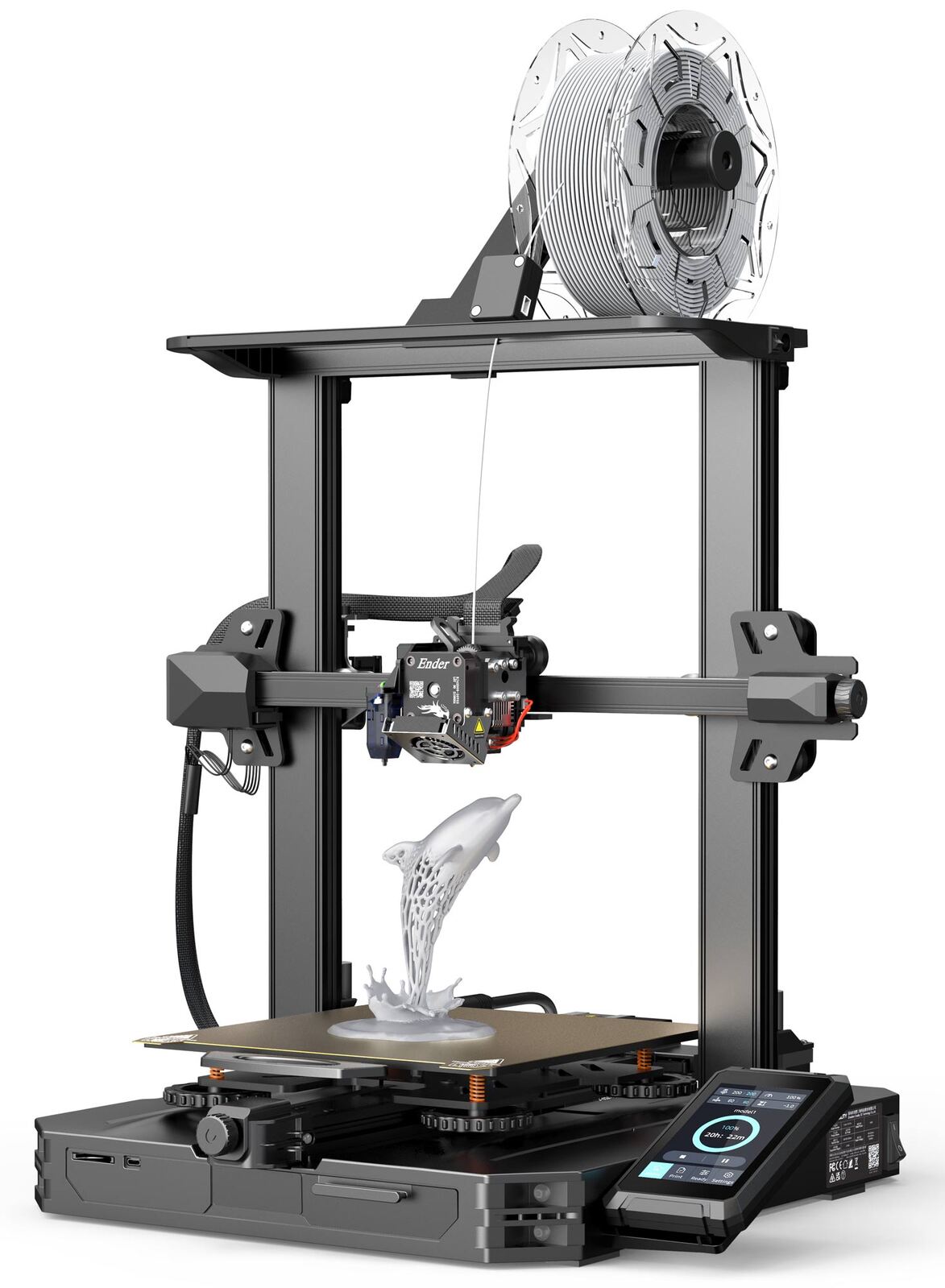

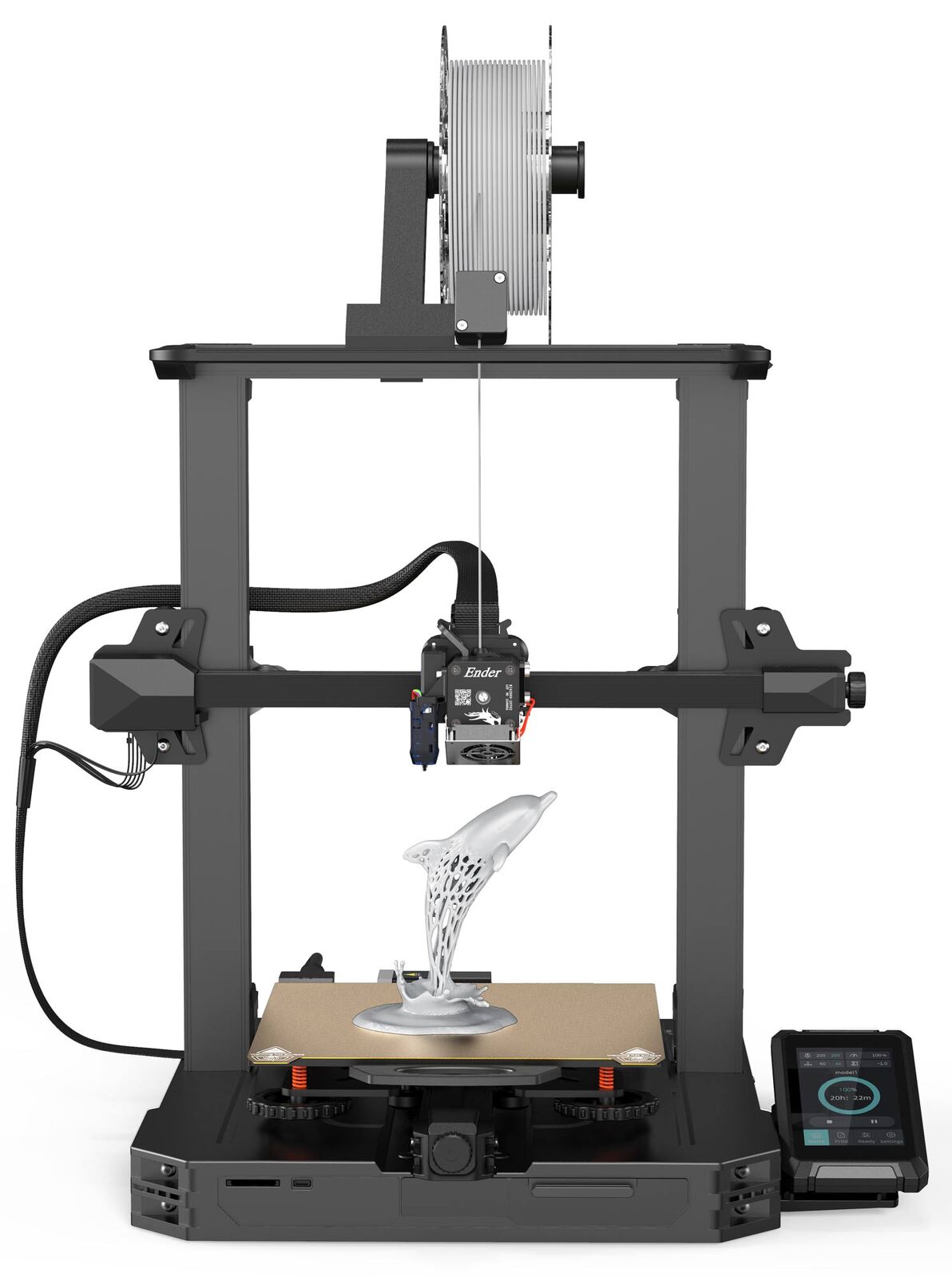

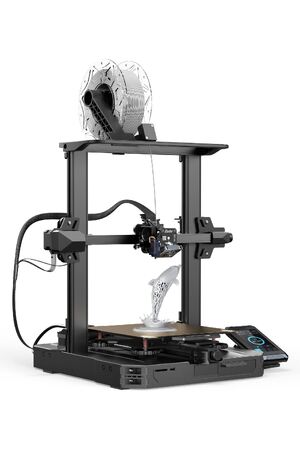

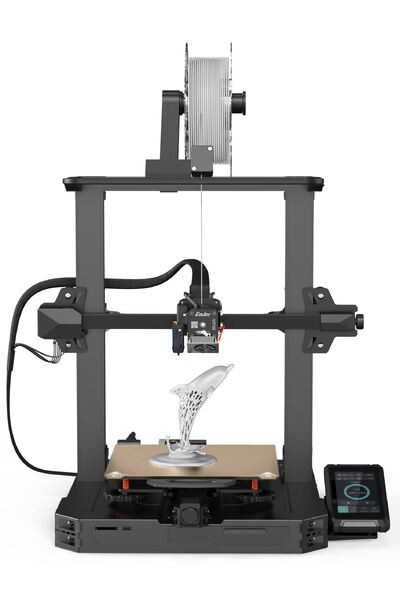

Creality Ender-3 S1 Pro 3D Printer

Part of the series 3D Printers & Accessories.

View all products in this series

---

The Ender-3 S1 Pro 3D FDM Printer is the ultimate version of Creality's famous Ender 3 which has sold over 1,000,000 units worldwide. It is equipped with a new direct dual ear extrusion unit, automatic bed levelling, silent stepper driver board and full colour touchscreen control. The 300°C nozzle temperature allows for a wide variety of filament usage including PLA, ABS, PVA, TPU, PA, PETG and wood. The new "sprite" full metal dual gear extruder virtually eliminates nozzle jams and provides up to 80N extrusion force for smooth feeding of filament. The flexible steel magnetic snap fit build plate ensures a stable surface for printing, whilst providing excellent overall adhesion to the bed on the first layer. The bed is kept level automatically by the CR-Touch sensor built into the print head, ensuring excellent accuracy on your prints.

The total build volume is 220 x 220 x 270mm and the compact design fits into a space on your desk measuring just 500x500mm, so it fits into almost any maker space!

The unit is controlled using the 4.3" touch screen which supports 9 languages and offers an easy user interface from which to control the printer operation and file selection. Whilst the LED light bar ensures you have a good view of your print as it progresses even on the darkest of work benches!

Supplied 96% assembled allowing you to be up and running in around an hour.

NOTE: Filament roll not included.

Features

• 300°C high temp nozzle.
• 220 x 220 x 270mm build volume.
• Small footprint - fits into a 500 x 500mm space on your desk.
• Wide compatability with a variety of filament including PLA, ABS, PVA, TPU, PA, PETG and wood.
• Full-metal dual gear direct extruder.
• CR Touch 16 point automatic levelling sensor.
• LED light bar.
• Spring steel flexible magnetic build plate.
• Silent main board - no noisy stepper motors!
• Filament sensor.
• Pause/resume printing.
• Compatible with Creality Ender Laser Engraving head.
• Supplied mostly assembled to get you printing faster.

Specifications

• Moulding technology: FDM
• Nozzle temperature: Up to 300°C
• Heat bed temperature: Up to 110°C
• Build volume: 220 x 220 x 270mm
• Machine dimensions: 490 x 455 x 625mm
• Display: 4.3" colour touch screen
• Weight: 8.6kg
• Motherboard: 32-bit silent
• Resume printing: Yes
• Filament sensor: Yes
• Printing speed: max 150mm/s
• Printing precision: ±0.1mm
• Voltage input: 220-240V AC 50/60Hz
• Layer height: 0.05-0.4mm
• Rated power: 350W/24V
• 3D file format: STL/OBJ/GCODE (after slicing)
• Nozzle diameter: 0.4mm
• Extrusion force: 80N
• Supported filaments: PLA, ABS, TPU, PETG, PA, WOOD
• Supported languages: Chinese, English, German, Spanish, French, Italian, Portugese, Russian and Turkish.

*Specifications are subject to change without notice.
