Altronics Wireless Wi-Fi Home Weather Station

Part of the series Environmental Testers.

View all products in this series

---

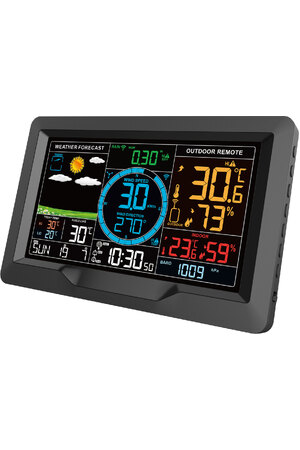

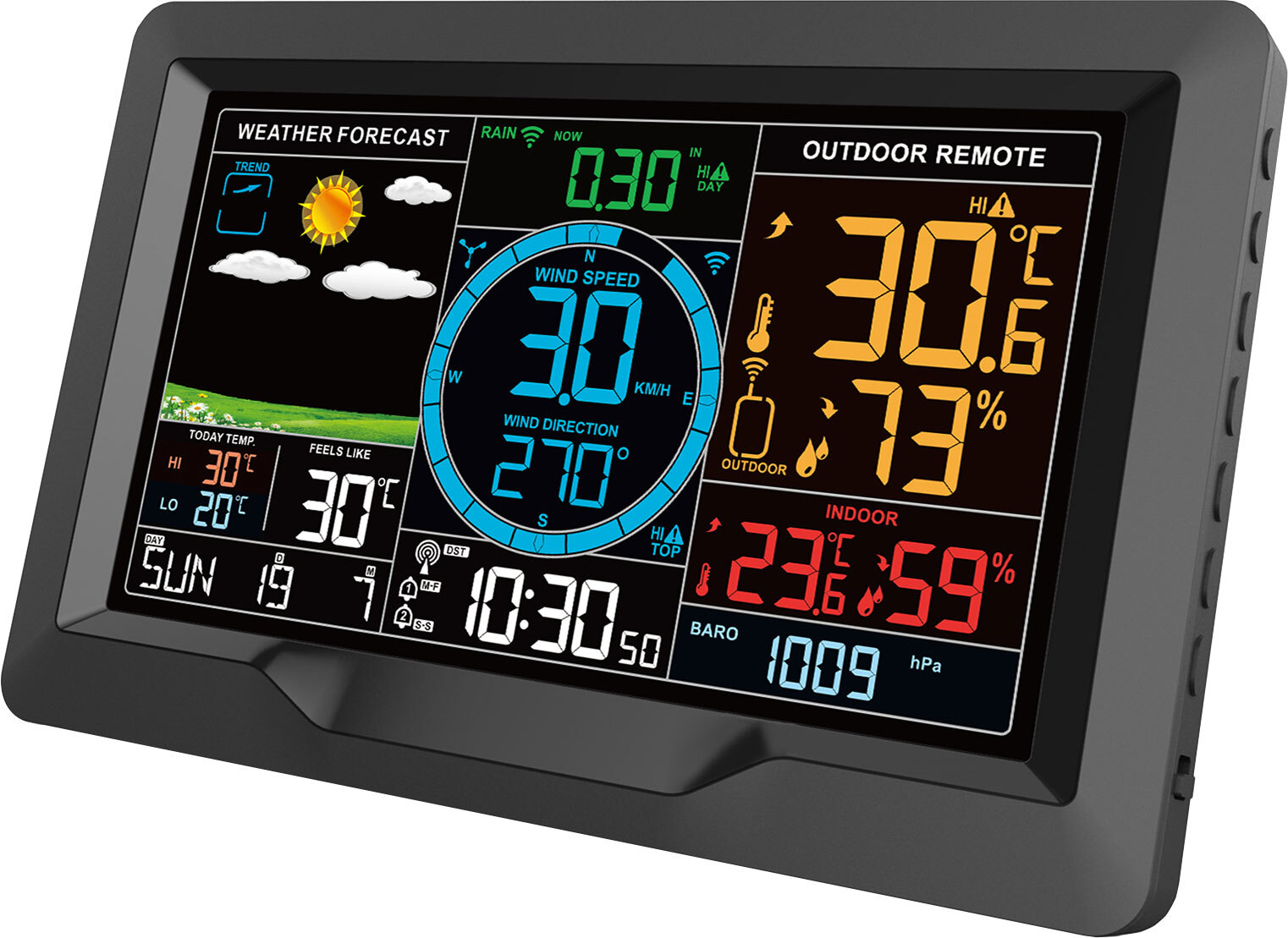

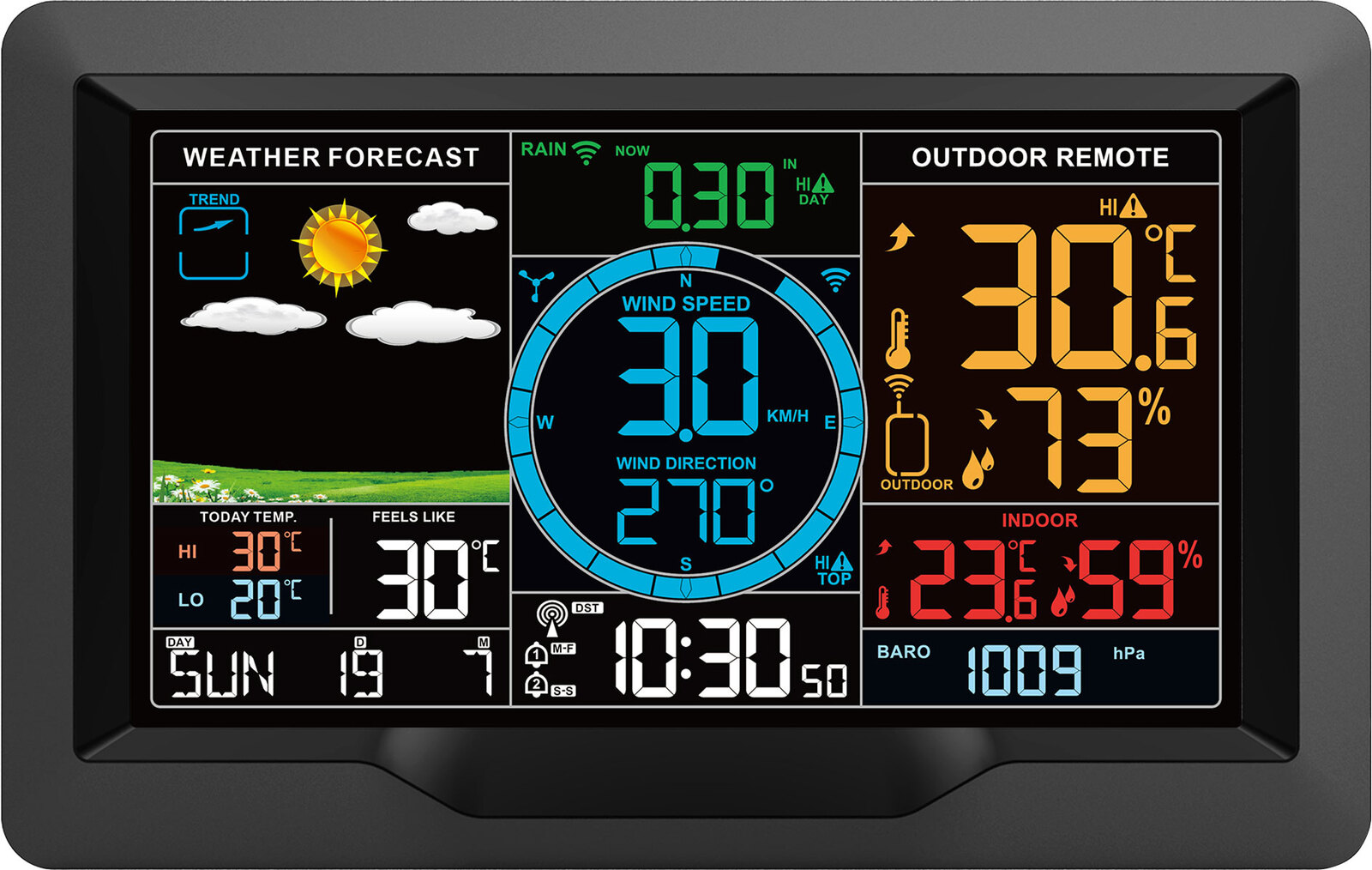

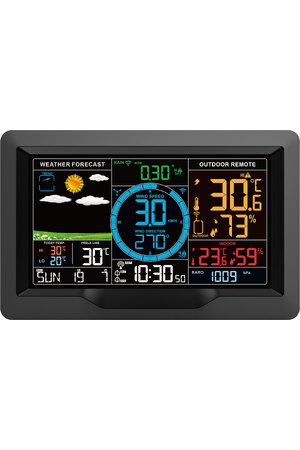

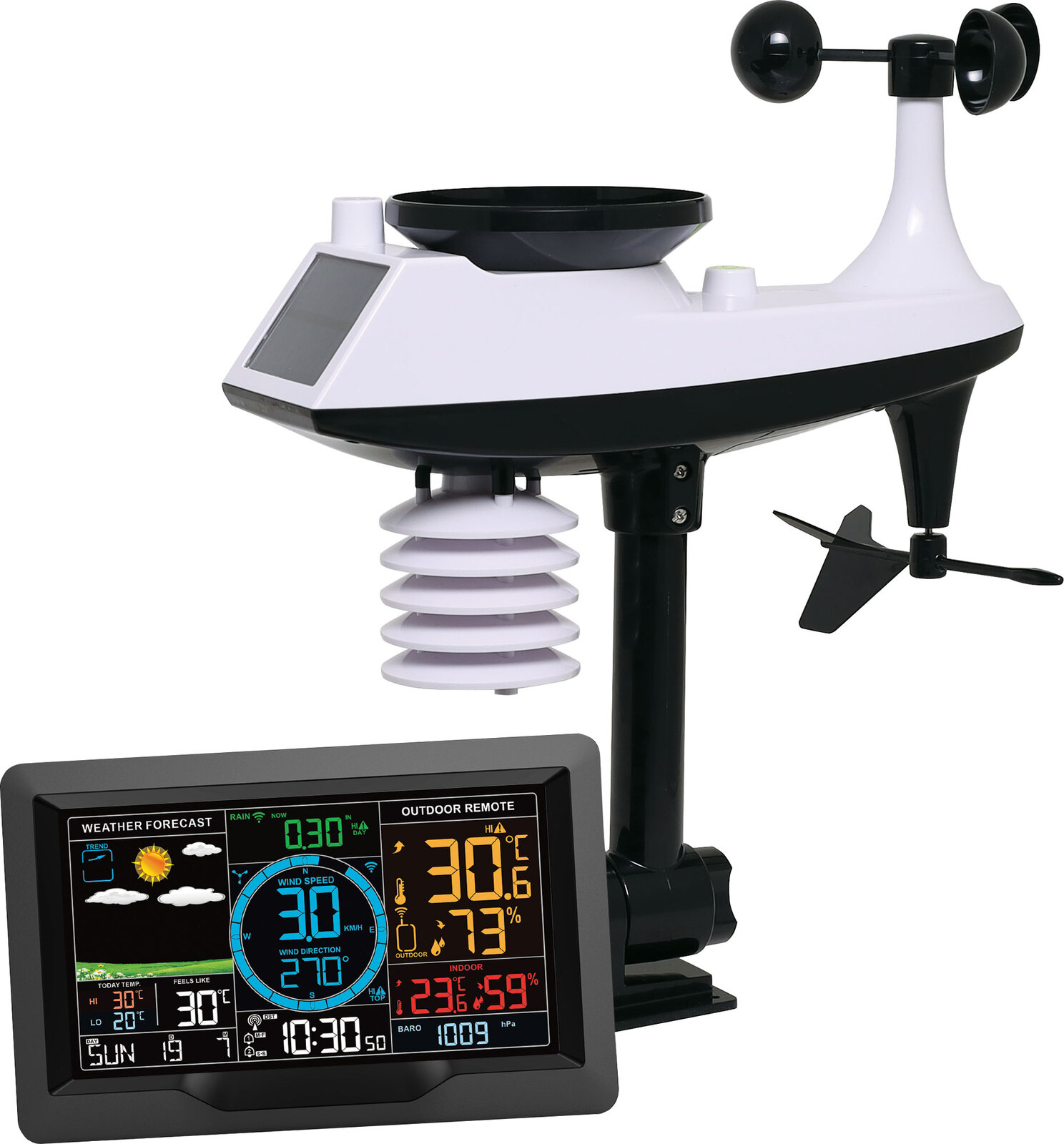

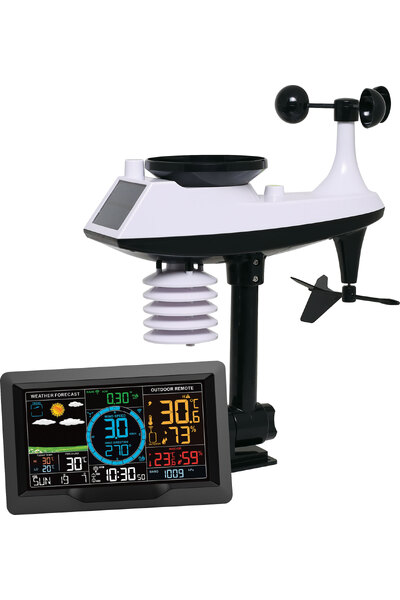

This fantastic wireless Wi-Fi home weather station contains everything you require to monitor live weather conditions at home. The main base station displays at a glance, indoor and outdoor temperature, humidity, barometric pressure, recent rainfall, wind speed and direction. Plus a handy weather forecast, trend indicator, calendar and dual alarm clock. All measurements are transmitted wirelessly from the solar powered sensors back to the main base station inside your home. It can also connect to your home wi-fi allowing monitoring of measurements via smartphone. External sensors can be located up to 100m from the main base station. Optional temperature/humidity wireless remotes sensor (X7064) sold separately. Base station size: 205Wx130Hx32D mm.

To connect the Weather Station screen terminal to the app on your mobile device, you must connect the station to the mains power. The app will send an email to your nominated account. The email will contain a link to synchronise the app with the weather station terminal.

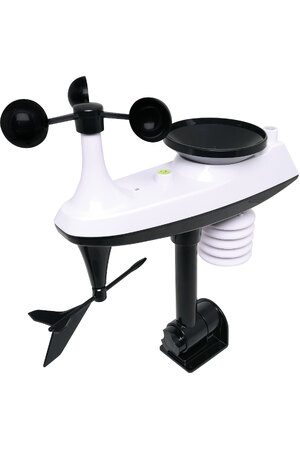

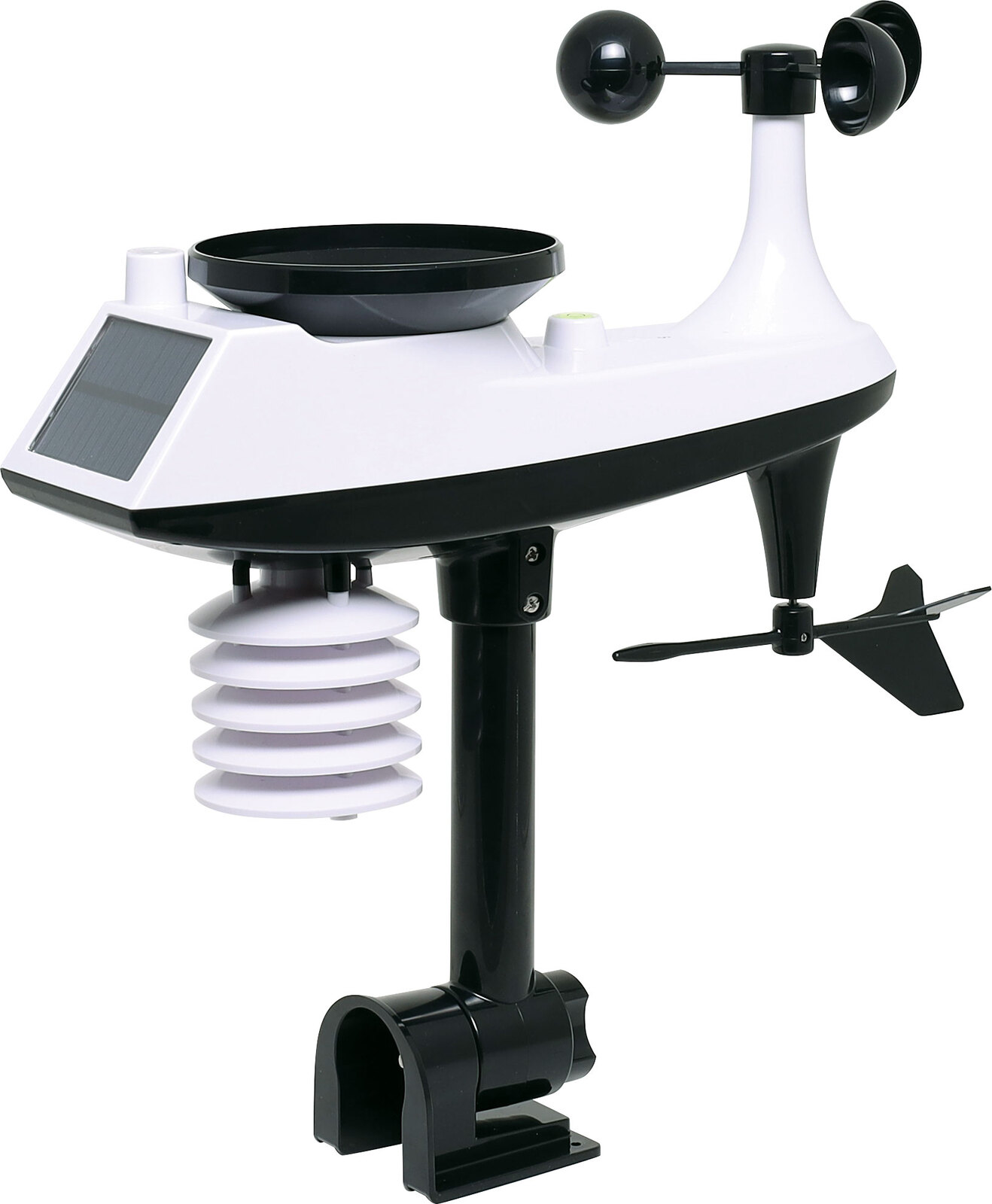

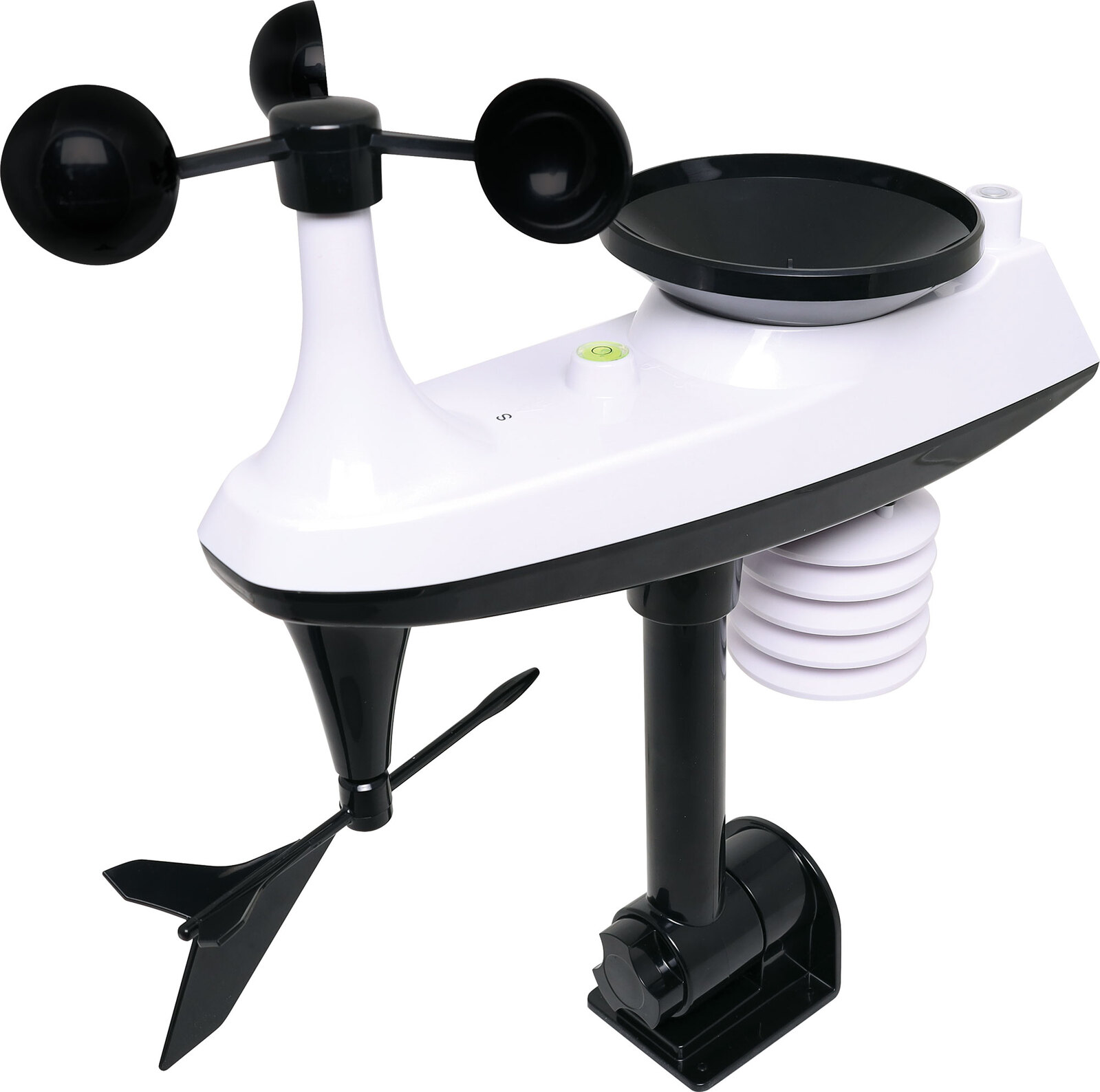

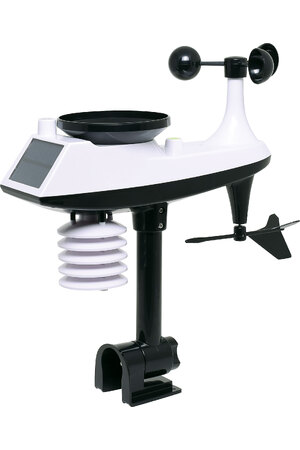

When setting up the outdoor unit: The end of the enclosure fitted with the solar panel must be pointing due North. If this step is missed during set up the unit will not display the correct wind direction.

Please Note: In our latest printed catalogue, box and printed manual, the batteries listed are incorrect. The multi combination sensor does also require batteries (please see 'Power Requirements' below). The catalogue also makes reference to touchscreen functionality, which this model does not have.

Requires 5 x LR6 AA batteries IN TOTAL (sold separately)

Power Requirements:
Weather Station:
Power Adapter: 5V DC 1.2A (included)
USB cable (included)
Battery: 2 x LR6 AA 1.5V (not included)

Multi-Combination Wireless Remote Sensor:
Battery: 3 x LR6 AA 1.5V (not included)


Box Contents
1x Outdoor Sensor Unit
1x Base Station
1x User Manual
1x Wall Charger
1x USB Lead
4x Screws (to mount the base station)
4x Wall plugs (to mount the base station)

Features

• Perpetual Calendar up to Year 2099
• Automatic calibration of network time service
• Day of week available to be selected in 8 languages
• Able to be used as an alarm with two daily alarms optional
• Automatic snooze function (OFF or 5~60min)
• Records temperature, humidity, wind speed and rainfall
• Display of ‘feels like temperature’, wind chill temperature, heat index, dew point temperature
• Future weather forecast and forecast temperature function
• Connects directly to Wi-Fi network
• Adjustable backlight (3 Levels) - when station is plugged in through USB output

Specifications

• Indoor Temperature: 0°C to 50°C (32°F to 112°F)
• Outdoor Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity Range: 20% to 95%
• Air Pressure: 600 to 1100 hPa (17.72 to 32.48 inHg or 450 to 825.1mmHg)
• Rain: 0 to 9999mm (0-393.6 inches)
• Wind Speed Range: 0 to 180 km/h (0 to 111 mph)
• Wind Direction Range: 0 to 359 degrees
• Light Range: 0 to 128 klux (0 to 1378 kfc)
• UV Index: 0 to 15 level
• Wireless Outdoor Sensor: 433.92MHz RF transmitting frequency, 100 meters transmission range in an open area, not including walls or floors.
• *Specifications are subject to change without notice.
