Altronics Serial To Ethernet Converter Network Connection Pack

Part of the series PA Accessories.

View all products in this series

---

This pack provides the components required to connect compatible Redback® products to an Ethernet network. Designated Redback® products have configuration software allowing remote setup & configuration via the Serial-to-Ethernet Converter (Altronics D4231) supplied in this pack.

Compatible Products:
A 4500C 24 Hour 7 Day Timer With Evac Tone Generator
A 4505C 7 Day Timer With Lockdown & Fire Alarm Control
A 4510B Yearly Programmable School Timer

Package Contents:

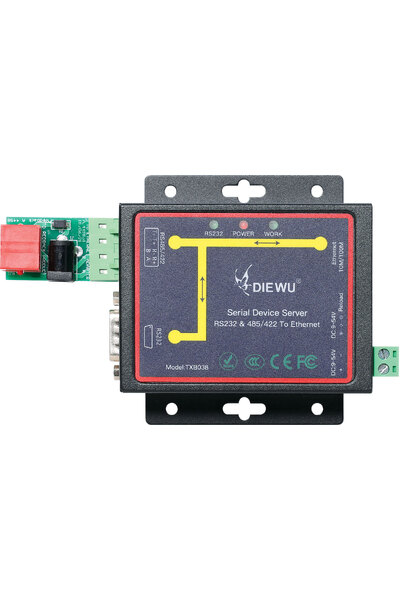

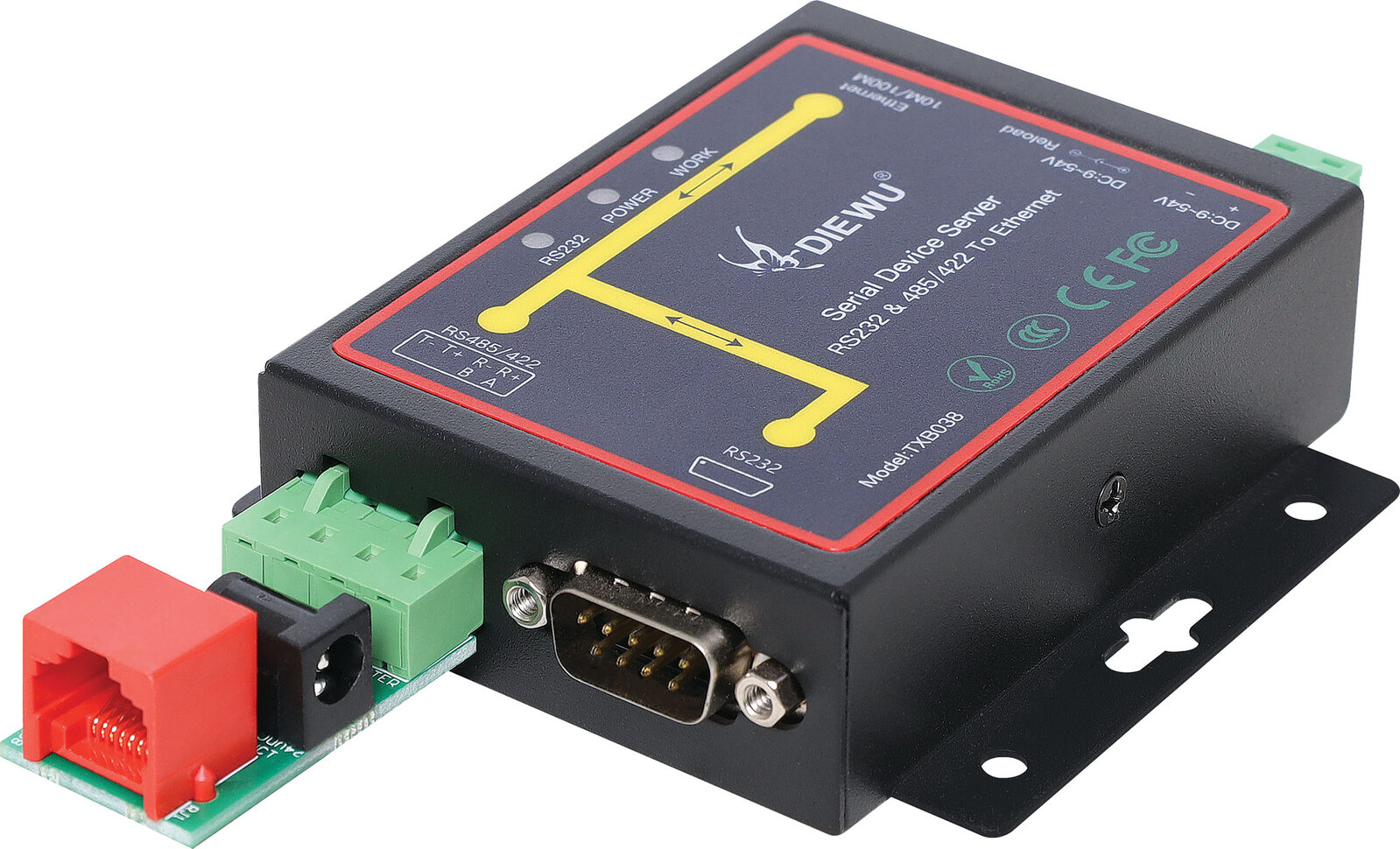

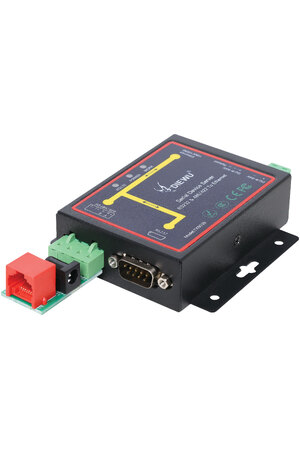

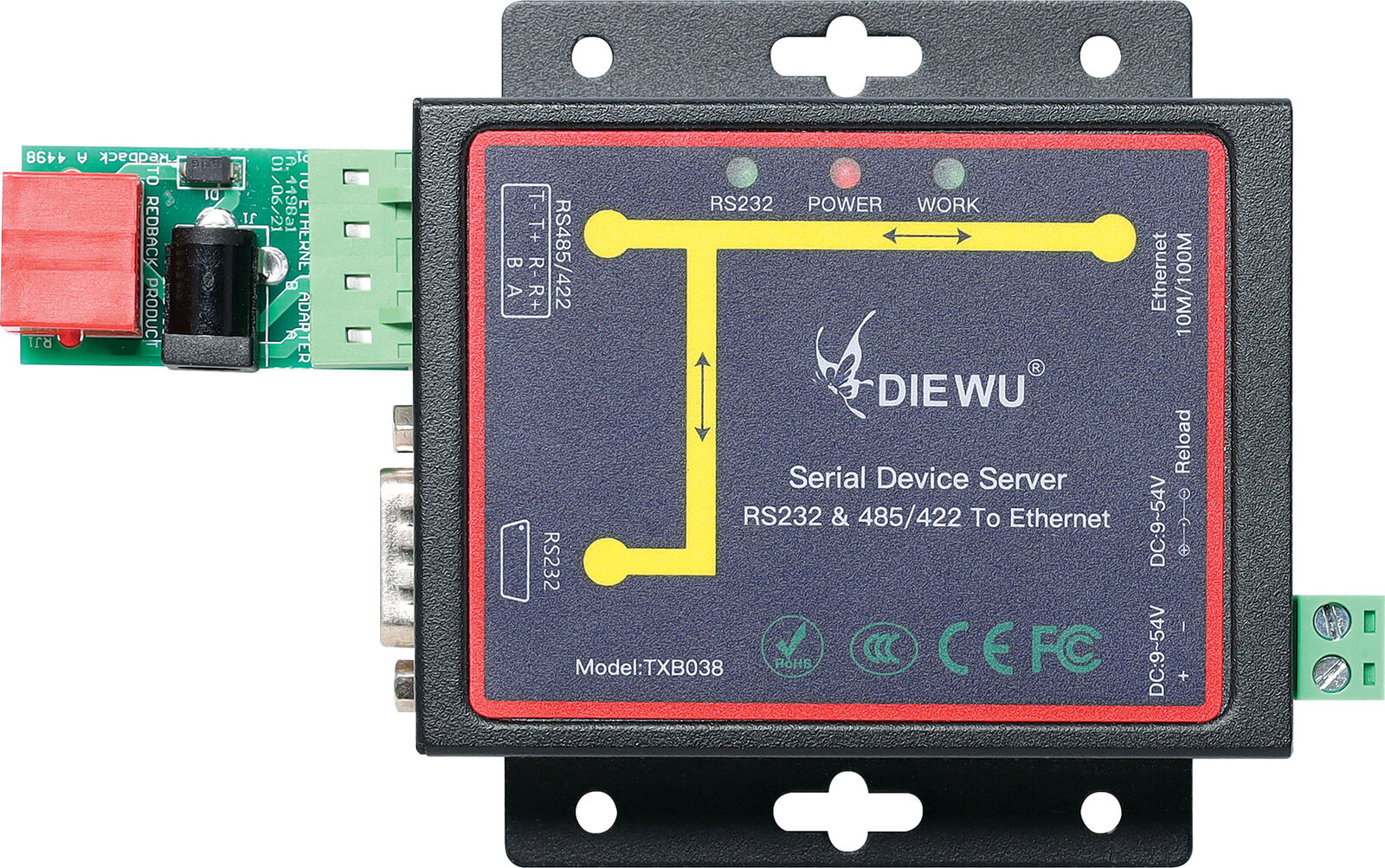

1x Serial-to-Ethernet Converter (D4231)
1x Proprietary Redback Adaptor Board
1x 1m CAT6 Patch Lead

Features

• Supports auto-MDI/MDIX
• Supports TCP/IP server, TCP/IP Client & UDP
• Baud rate 300bps-230400bps
• Supports Modbus RTU
• Reload function
• RS485 support full duplex and half duplex

Setup Guide

Specifications

• Chipset: IP210
• Ports: 1 port 10/100M Auto MDI-MDIX RJ45，1port RS232, 1port RS485/422
• Standards: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az
• Network: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP
• Data rate: 10/100M
• Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
• LED Indicators: Link/Act, Power, System, TX/RX
• Baud rate: 110bps~256000bps
• Operation modes: TCP Server, TCP Client, UDP
• Dimensions: 86W x 84H x 25Dmm
• Power Input: 9V-54V DC
• Power Consumption: Max 1.8W
• Operating Temperature: -10°C to 55°C
• Relative Humidity: 10%-90% (non-condensing)
• Device Defaults
• ID: admin
• Password: system
• IP address: 192.168.2.1
• Operation mode: TCP server
• Transmission Mode: RS232
• Baud rate: 57600bps
• UART parameters: 57600, 8, N, 1
• Local port TCP 23, UDP 21

*Specifications are subject to change without notice.
