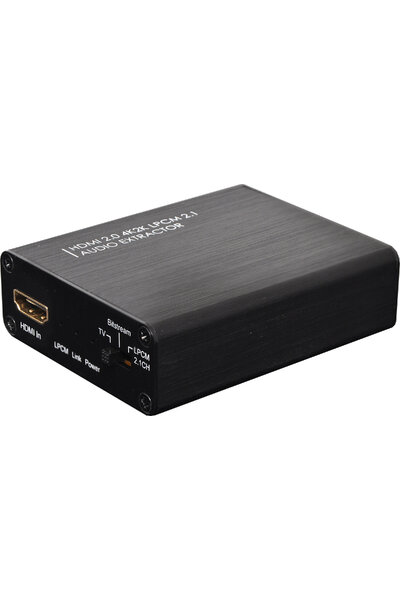

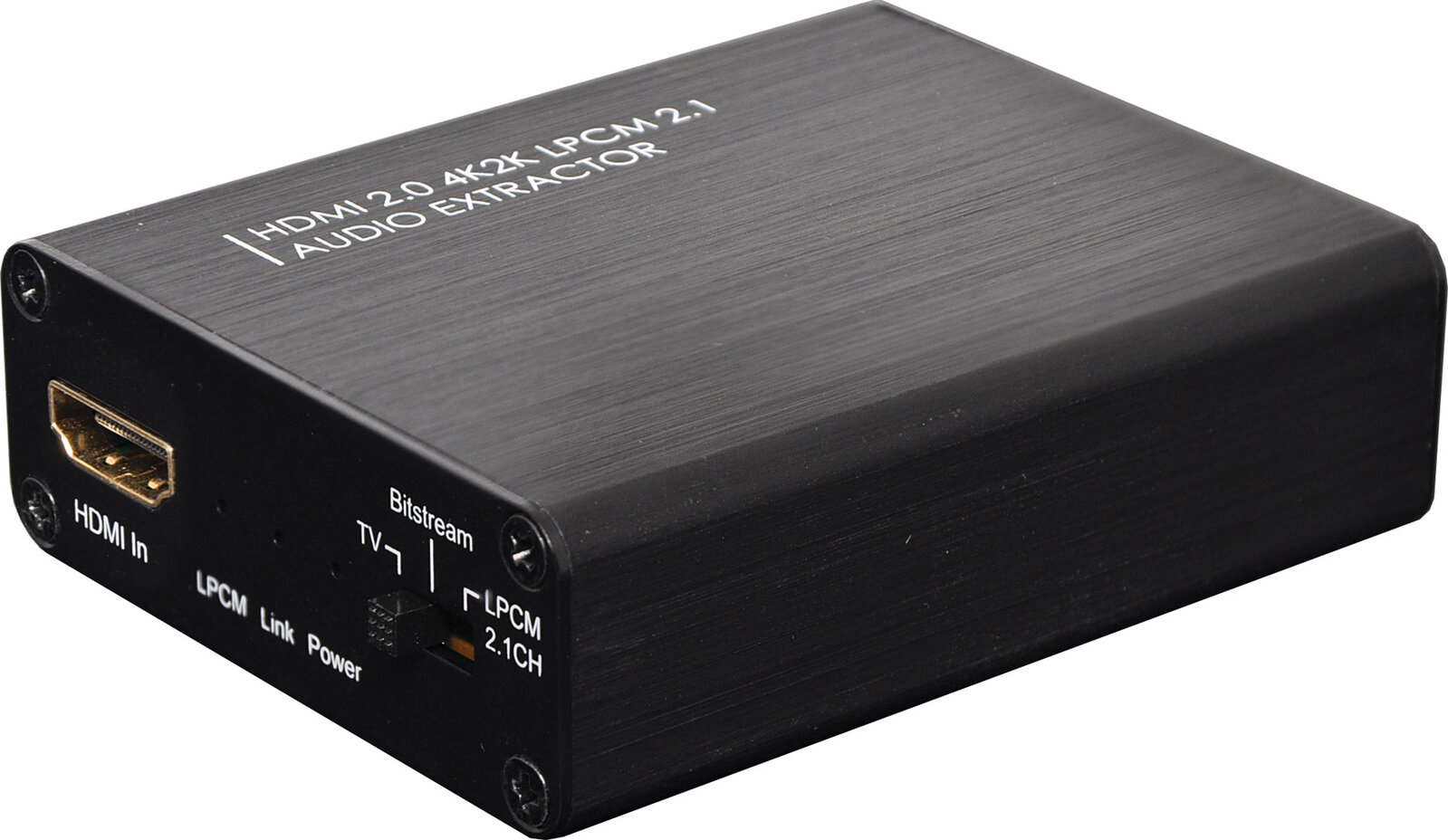

Altronics HDMI 2.0 4K2K Audio Extractor

Part of the series HDMI Switchers, Splitters & Converters.

View all products in this series

---

With the help of this audio extractor you can extract audio signals from any HMDI compliant source to digital optical or analog stereo audio outputs. It features both input and output of HDMI supporting video resolution up to 4K2K at 50/60Hz. Includes power supply.

Features

• Compliant with HDMI 2.0b, HDCP 2.2 and DVI
• Supports HDMI Video resolution up to 4K2K@60Hz YUV4:4:4
• Extracts HDMI Audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1Ch
• Supports HDMI Hight bit Rate audio pass through
• Audio Sample rates up to 192kHz
• 10bits HDR (high dynamic range) pass through
• Supports CEC bypass

Specifications

• General
• Dimensions: 77x64x23mm
• Power Supply: Input: AC 100-240V 50/60Hz
• Output: DC 5V/2A
• Technical
• HDMI Compliance: HDMI 2.0b
• HDCP Compliance: HDCP 2.2 and HDCP 1.4
• Video Bandwidth: 18Gbps
• Video Resolutions: Up to 4K2K at 50/60Hz (YUV 4:4:4), 4K2K at 30Hz, 1080p at 120Hz, 1080p 3D at 60Hz
• Colour Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Colour Depth: 10-bit, 12-bit
• HDMI Audio Formats: LPC< 2.1CH, Dolby Digital, DTS 2.1, Dolby Digital + Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
• Optical Audio Formats: LPCM 2.1CH, Dolby Digital 2.1CH, DTS 2.1CH
• L/R Audio Formats: Analog Stereo 2CH
• ESD Protection: Human body model

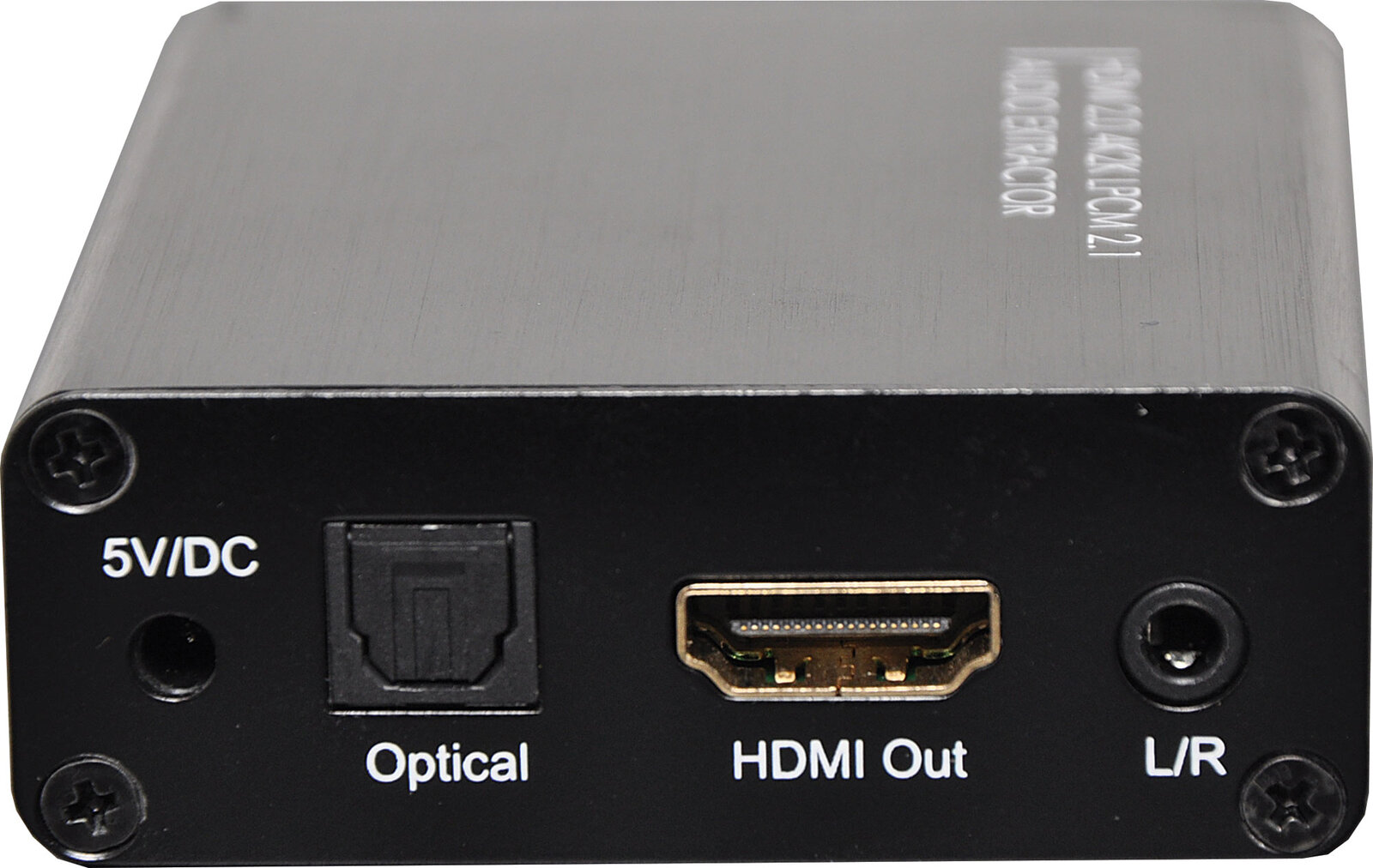

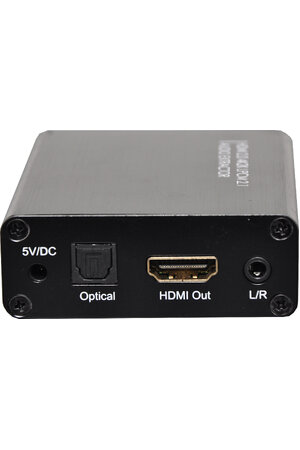

• Connections
• Inputs: 1x HDMI Type A (19-pin Female)
• Outputs: 1x HDMI Type A (19-pin Female)
• 1x L/R Audio Out (3.5mm Stereo Mini-jack)
• 1x Optical Out (S/PDIF)

*Specifications are subject to change without notice.
