Altronics DC-DC Buck Boost Module 1A / 1.25V-26V DC (ALT-Z6337) Educational Resources and Supplies

2-5 working days: most Australian metropolitan areas.
5-10 working days: most regional and remote locations throughout Australia.

Buy in bulk & save!
Buy 1 to 4:	$19.90 each
Buy 5 to 9:	$19.40 each
Buy 10 or more:	$18.90 each

Available on orders $80 to $1000
Learn more

A DC-DC buck module utilising the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A.

Availability: Available Usually Dispatched In: 5 - 7 Business Days Product Code: ALT-Z6337 ISBN: 9321758176528 Brand/Publisher: Altronics Categories: Technologies, STEM & STEAM,

Part of the series Arduino Kits & Accessories.

View all products in this series

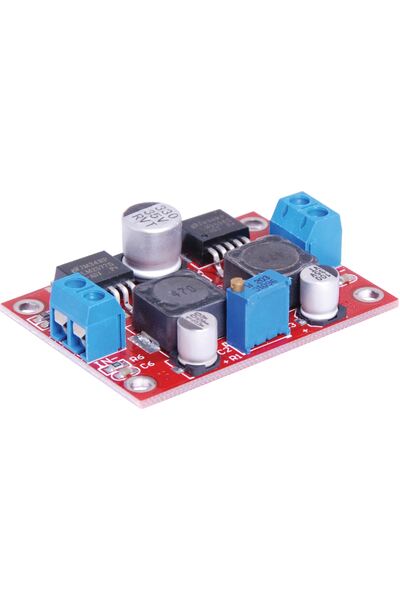

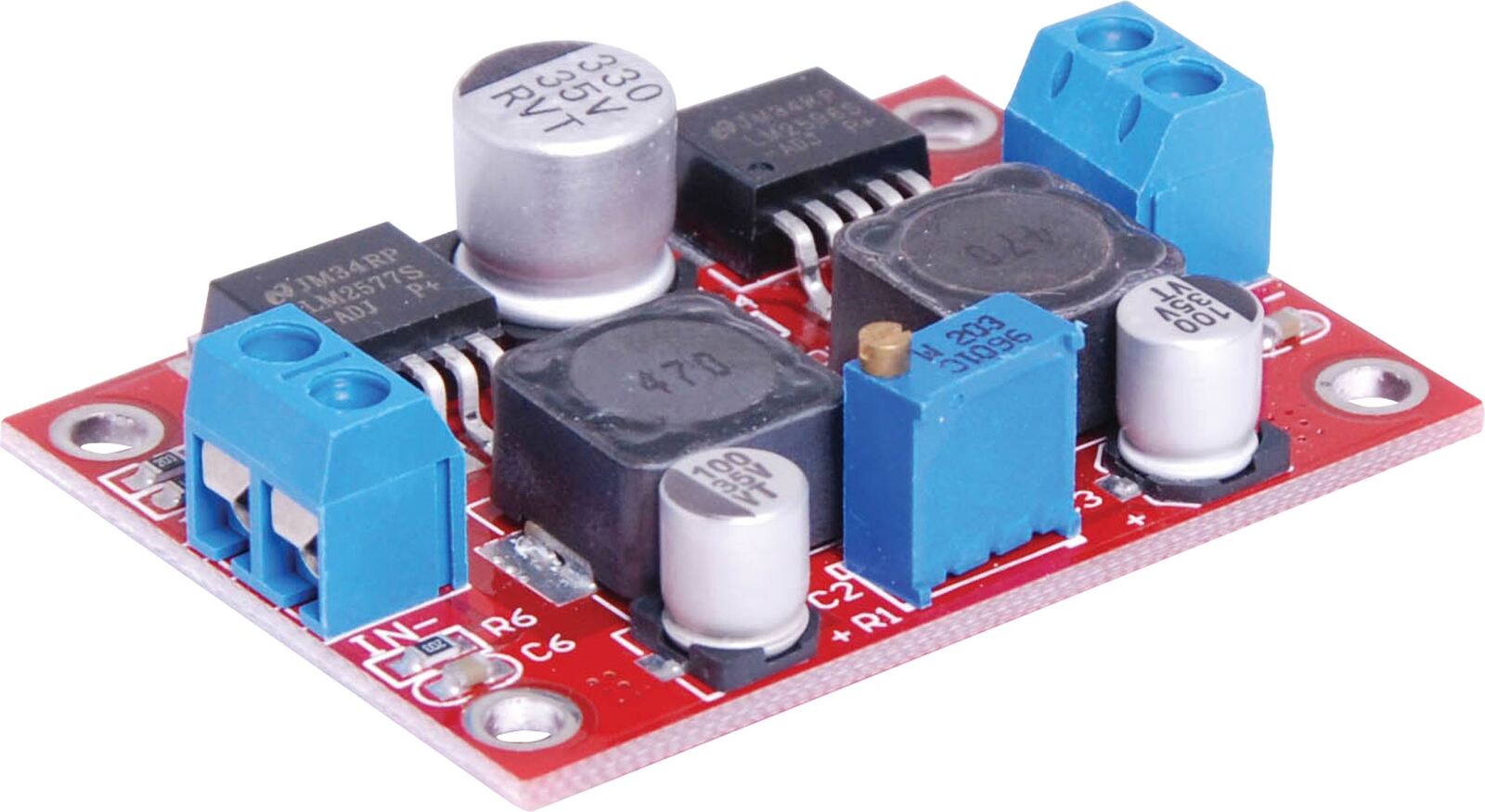

A DC-DC buck module utilising the LM2596S and LM2577 to accept a 3.5-28V input and output 1.25-26V (adjustable) at a max current of 1A. Includes brass standoffs. Ideal for small projects where regulated power is required. Size: 53L x 38W x 21H mm.

Specifications

Dual Chip: LM2577S + LM2596S
Size: 53x38x15mm
Boost Mode
Input Voltage: 3.5-28V
Output Voltage: 1.25V-26V
Note: The output voltage is not related to the input voltage (that is, input any value of 3.5V-28V, output any value of 1.25V-26V)
Buck Mode
Current Input Maximum: 3A.
Output Maximum: 3A.
Rated Input: 1A,
Rated Output: 1A
Note: The output voltage (any value between 1.25V-26V) is irrelevant to the input voltage (input 3.5V-28V arbitrary value), the module automatically lifts and drops.
