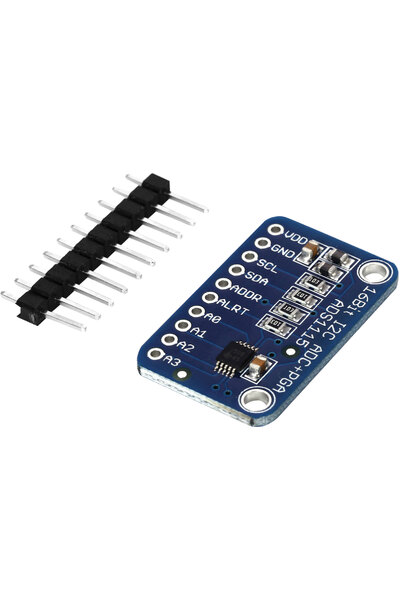

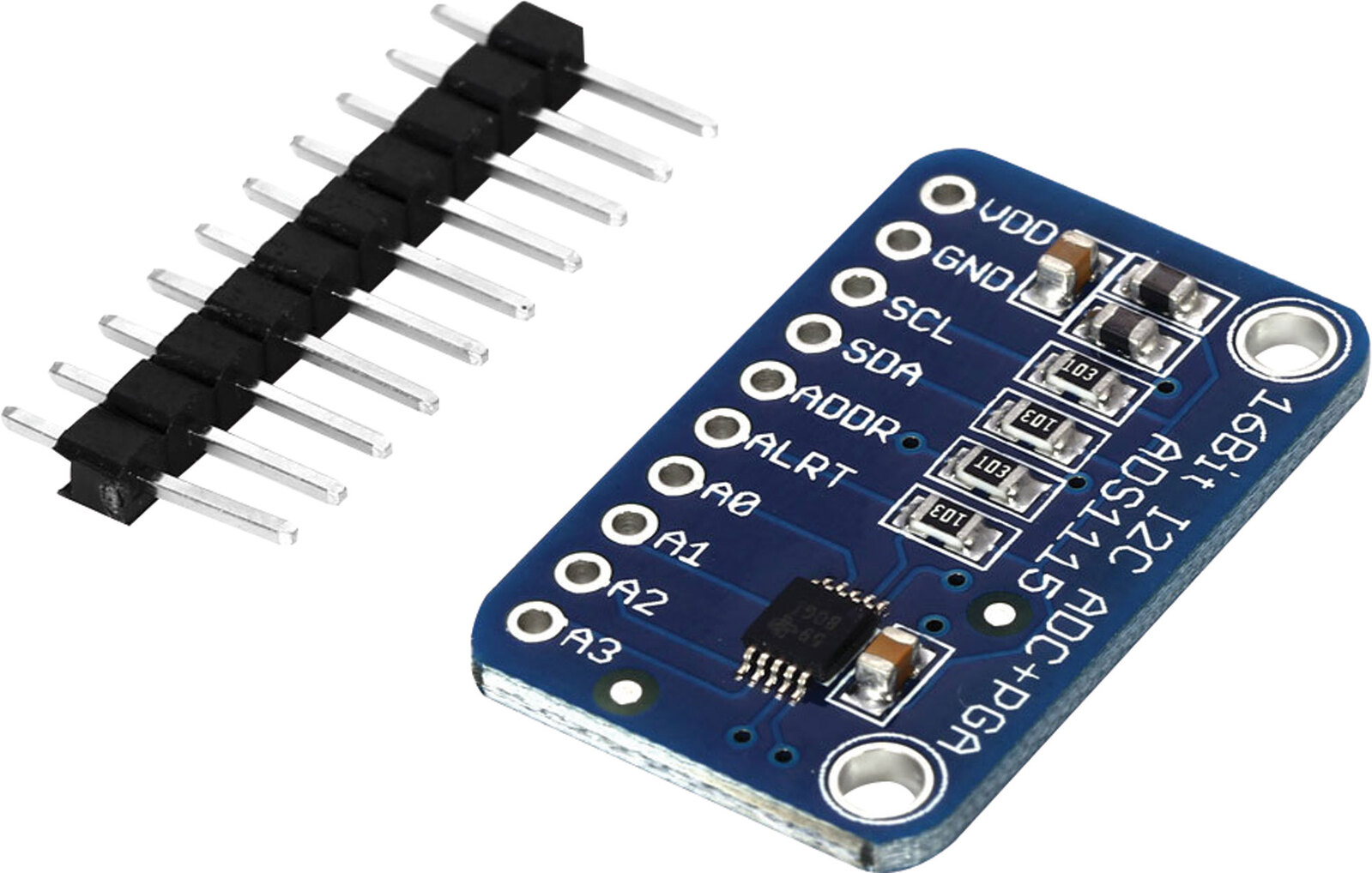

The ADS1115 4-channel breakout board is perfect for adding high-resolution analog to digital conversion to any microprocessor-based project. They are controlled from a standard 2 wire I2C bus providing 8 differential channels or 16 single end channels. A programmable gain amplifier is inbuilt for x16 gain. 2-5V input logic signal, compatible wirth all common 3.3V and 5V microcontrollers.
ADC Breakout Setup Guide
Specifications
- ADC bit rate: 16 Bit
- Interface type: I2C
- Channel: 4 Channel AN0 AN1 AN2 AN3 or 2 different input
- Input voltage: 2.0-5.5V
- Channel input voltage: 0-VDD
- Continuous mode: Only 150μA
- Single-shot mode: Auto Shut-Down
- Programmable data rate: 8sps-860sps
- Module size: Approx. 17 x 28 x 0.1mm
- Pin size: Approx. 11 x 25mm
*Specifications are subject to change without notice.
Downloads
Data SheetSKU | ALT-Z6221 |
