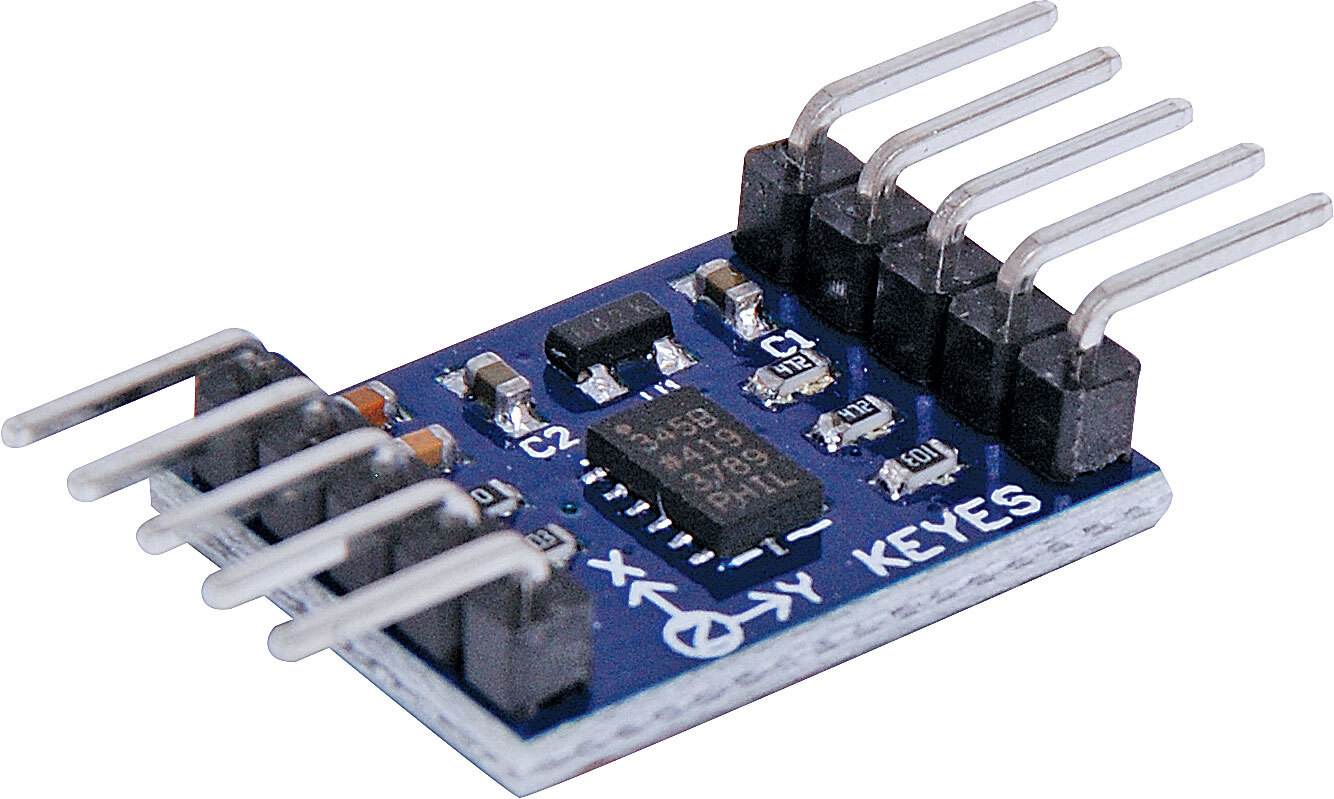

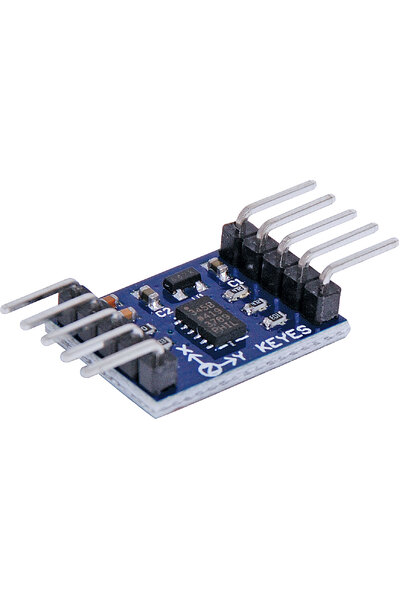

The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.
Features
- The digital output data is 16-bit two's complement format
- ADXL345 is low power consumption and a 3-axis accelerometer
- Suitable for portable device application.
- Great for microcontroller's experiment
- Capable of measuring less than 1 degree inclination angle change
- With free-fall detection function
- Activity and non-activity detection function, and detects if arbitrary axis acceleration exceeds a user-set limits
Specifications
- Power Supply: 3~5V
- Resolution: 13bit, 4 mg / LSB
- Measurement Range: +/- 16g
- Communication Type: SPI / IIC
*Specifications are subject to change without notice.
