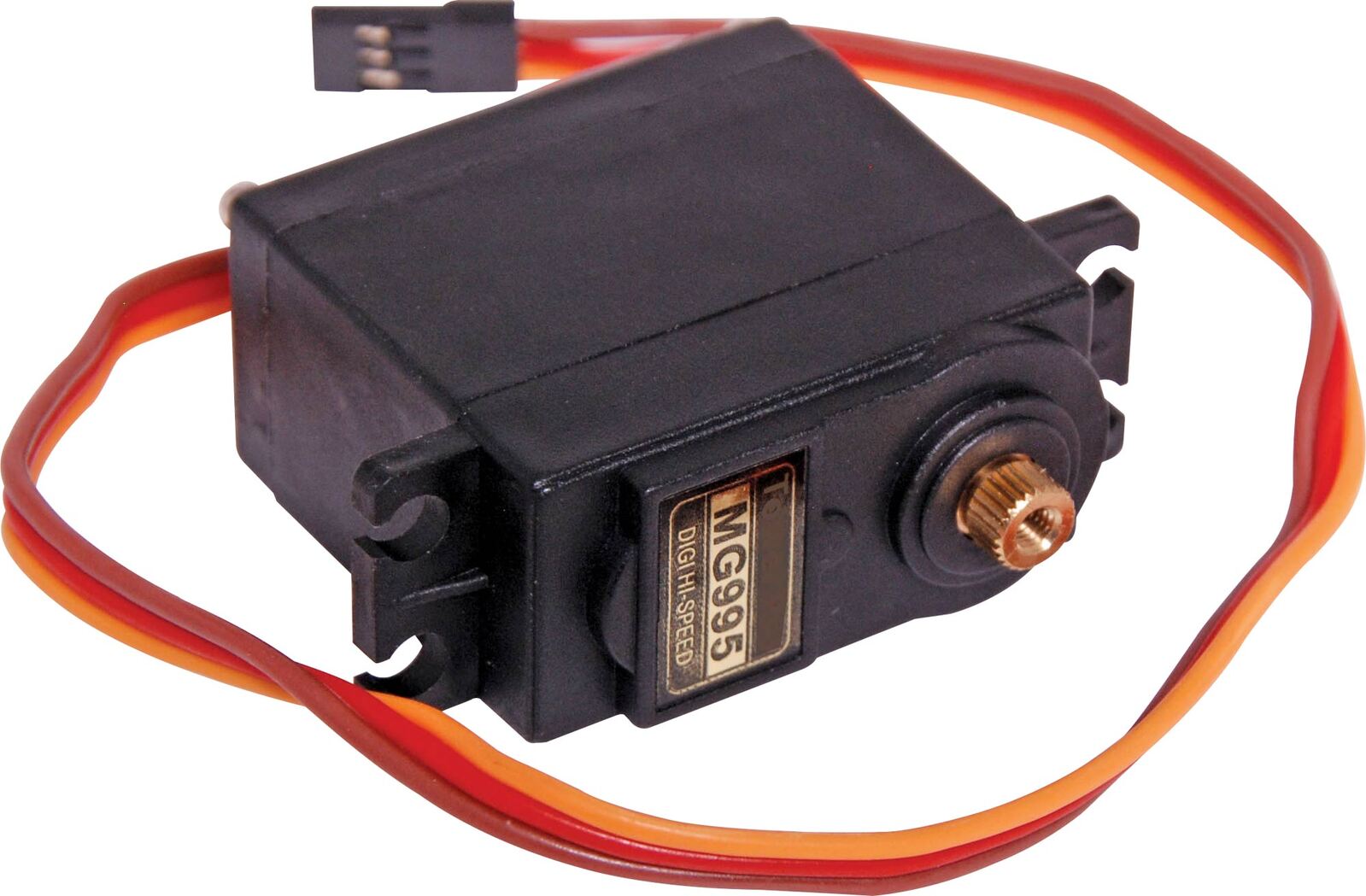

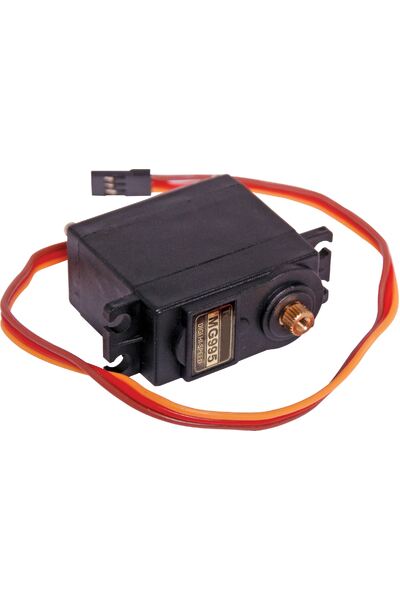

The unit comes complete with 30cm wire and 3 pin 'S' type female header connector that fits most receivers, including Futaba, JR, GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum and Hitec.

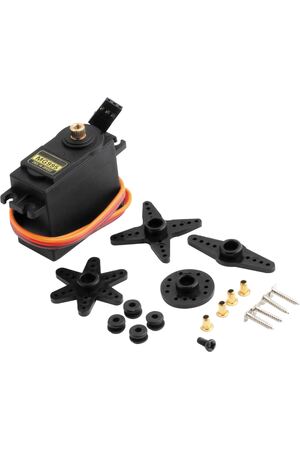

This high-speed standard servo can rotate 360 degrees continuous. You can use any servo code, hardware or library to control these servos, so it's great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. The Z6393 Metal Gear Servo also comes with a selection of arms and hardware to get you set up nice and fast!
Specifications
- No-Load Speed (4.8V): 0.12±0.01 sec/60
- No-Load Speed (6V): 0.11±0.01 sec/60
- No-Load Current (4.8V): 220±20mA
- No-Load Current (6V): 250±20mA
- Stop Torque (4.8V): 7kg±0.1kg·cm
- Stop Torque (6V):9kg±0.1kg·cm
- Stop Current (4.8V): ≦2200±30mA
- Stop Current (6V): ≦3000ma
- Stand-by Current: 4±1mA
- Wire Length: 300mm
- GearType: 4 grade plastic gear + metal motor teeth
- Rudder Specifications: 25T
- Rudder Type: One-word rocker arm cross arm disc flower arm
- Control System: Change pulse width
- Amplifier Type: Analog controller
- Operating Angle: 360°
- Angle Difference Between The Two Sides: ≤ 3°
- Back To Difference: ≤ 1°
- Neutral Position: 1500 μsec
- Impulse Signal: ≤ 5 μsec
- Turn Around: Clockwise (in 1500→1000 μsec)
- Pulse Width Range: 800→2200 μsec
- Physical Dimension: 40.5 x 20 x 41mm
- Weight: 42g
*Specifications are subject to change without notice.
