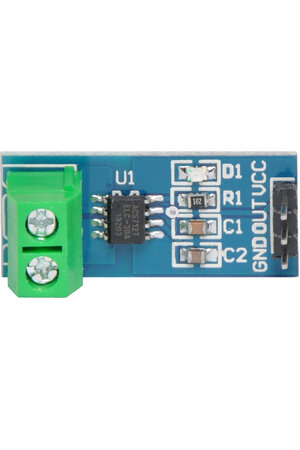

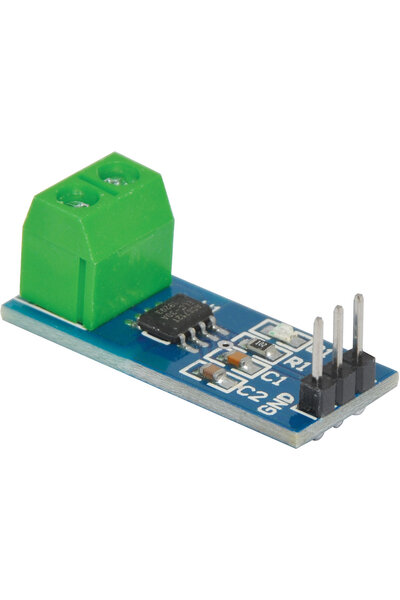

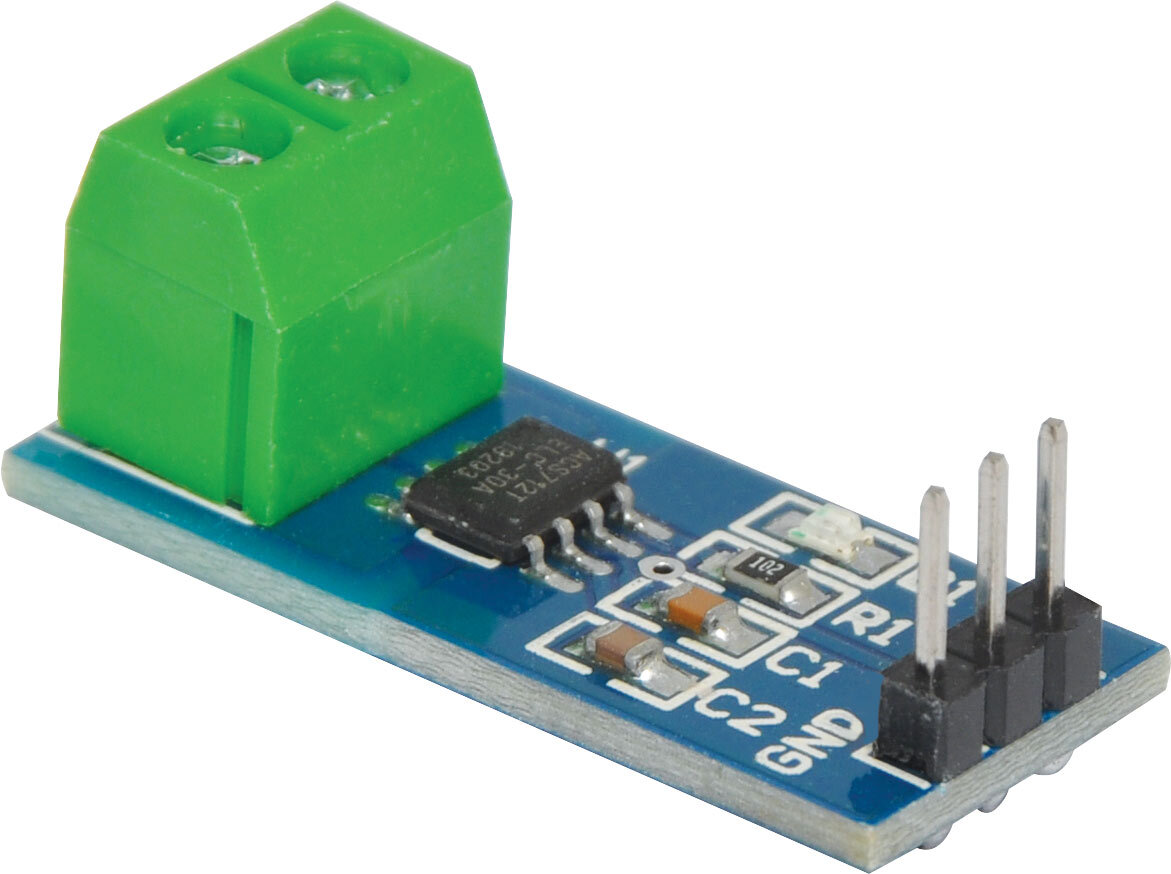

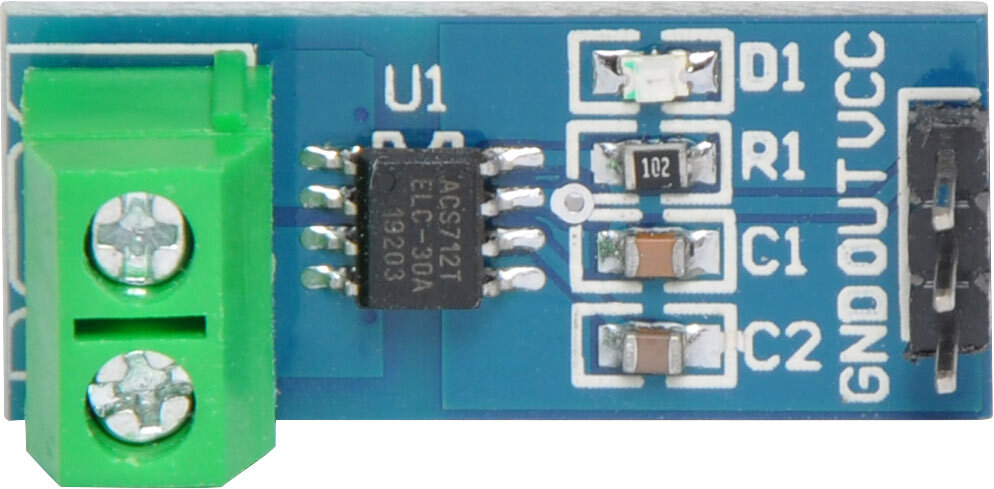

This 30A Current Sensor Module has been designed to be used within Arduino projects. Its a fully Integrated, Hall Effect-Based Linear AC/DC Current Sensor with a 30A rating. Ideal for Arduino projects.
Applications Include:
Motor control
Load detection and management
Switch mode power supplies
Over current protection
Features
- Low-noise analog signal path.
- 5µs output rise time in response to step input current.
- 50 kHz bandwidth.
- Total output error 1.5% at TA= 25°C, and 4% at –40°C to 85°C.
- Small footprint, low-profile SOIC8 package.
- 1.2 mΩ internal conductor resistance.
- 2.1 kV RMS minimum isolation voltage from pins 1-4 to pins 5-8.
- 5.0 V, single supply operation.
- 66 to 185 mV/A output sensitivity.
- Output voltage proportional to AC or DC currents.
- Factory-trimmed for accuracy.
- Extremely stable output offset voltage.
- Nearly zero magnetic hysteresis.
SKU | ALT-Z6429 |
ISBN | 9321758237496 |
Publisher | Altronics |
Product Type | Technology, |
