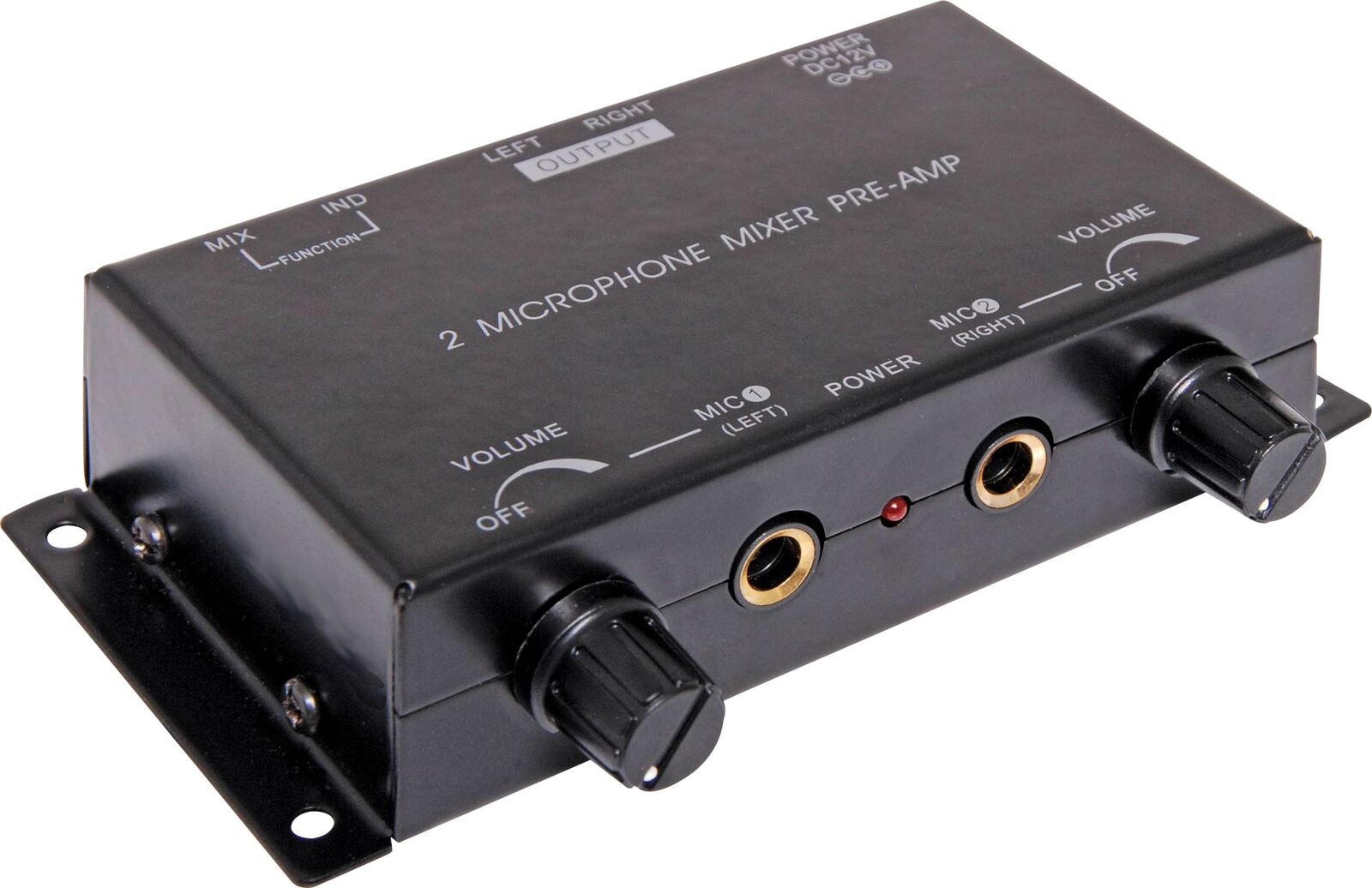

This compact microphone preamplifier mixer has two operating modes - Mixed and Discreet.

Availability: Available Usually Dispatched In: 5 - 7 Business Days Product Code: ALT-A3044 ISBN: 9321758182864 Brand/Publisher: Altronics Categories: Professional Audio,

Part of the series PA Accessories.

View all products in this series

This compact microphone preamplifier mixer has two operating modes - Mixed and Discreet. In discreet mode each microphone input is assigned to its own audio output. That is, the left mic input will be discreetly assigned to the left RCA output, while the right mic input will take the right RCA output. In mixed mode the two microphones signals are mixed and the mixed mono signal is directed to both RCA outputs. This device is ideal where space is limited. Operates on 12V DC. Power supply included.

Specifications

Input: 6.35mm Dynamic microphone
Input impedance: 600Ω
Pre-amplifier Gain: 50dB
Signal to Noise Ratio: 80dB
Power Source: 12V DC
Discreet Mode: MIC 1 (Left) to RCA Left only; MIC 2 (Right) to RCA Right only.
Mixed mode: Mixed Mono (not stereo) output (MIC 1 + MIC 2 to RCA (L+R)).
RCA output: Line level 1Vpp~3Vpp (according to MIC Input Level).
Microphone 6.35mm TRS mono inputs: Not suitable for connection of line level output devices like iPods etc. Mics only.

*Specifications are subject to change without notice.
