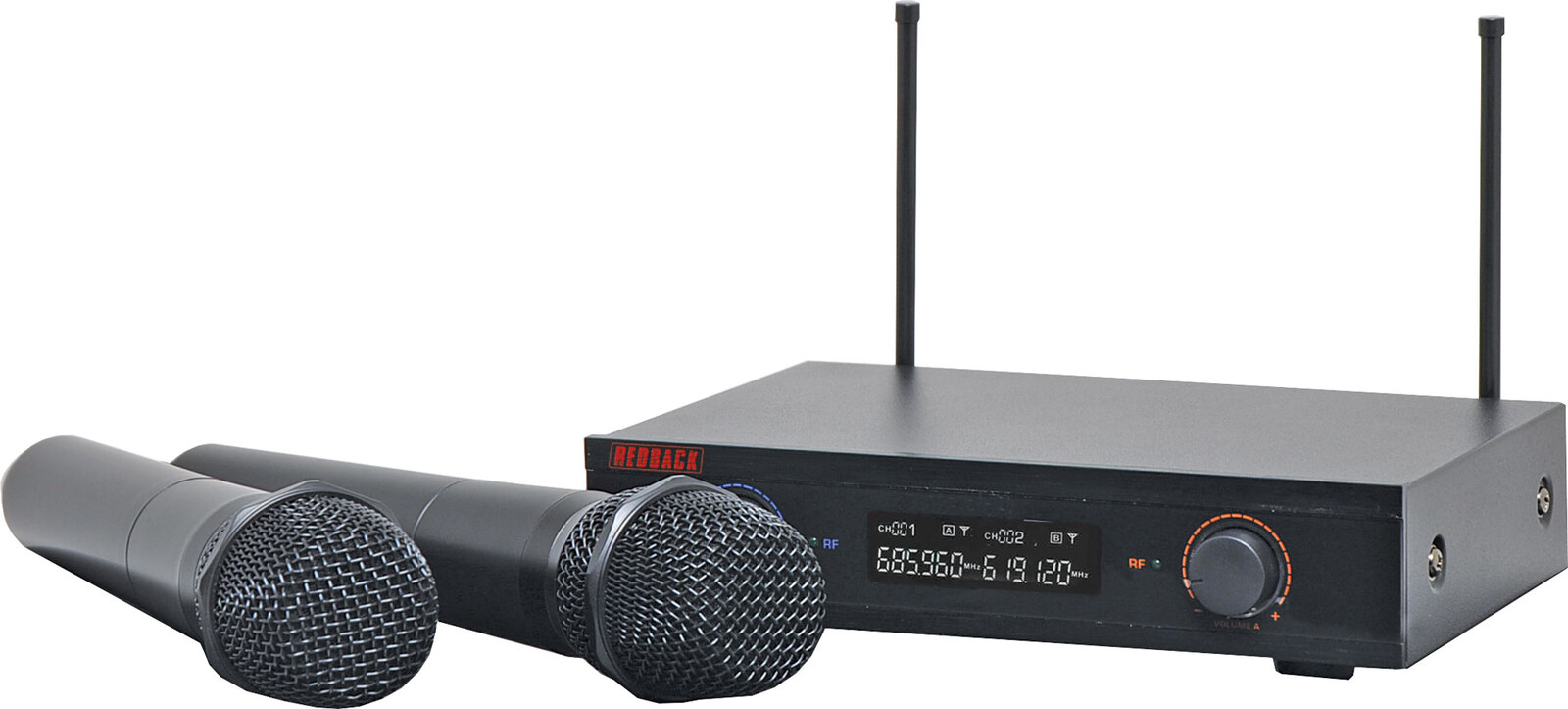

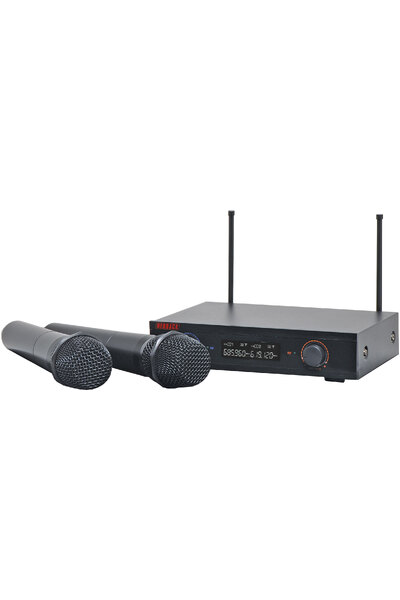

Redback UHF Wireless Microphone System 2 Ch With Two Handheld Mics

Part of the series Microphones.

View all products in this series

---

This 2 channel fixed frequency UHF wireless microphone system, includes two handheld microphones and is the perfect system for wedding ceremonies, DJs, sporting clubs, schools, restaurants and function centres. Both microphones may be used simultaneously, making it perfect for Q&A sessions or with two people on stage. The fixed frequency design cuts out all the channel set up requirements, simply switch it on, set the output level and start talking! The miniaturised SMD construction and unique shielding technique, ensures excellent performance and minimal external interference. The receiver features an independent front panel level control and RF indicators. Outputs are provided for each channel via 3 pin XLR, plus a mixed output via 6.35mm jack. A range of 60m or more is obtainable in ideal conditions.

Includes 2 x Handheld Transmitters

Note: Includes 4 x AA batteries (2 per transmitter)

Features

• Multilevel high and mid frequency narrowband filters
• Advanced noise detection and control
• Tone key linked identity to reduce interference

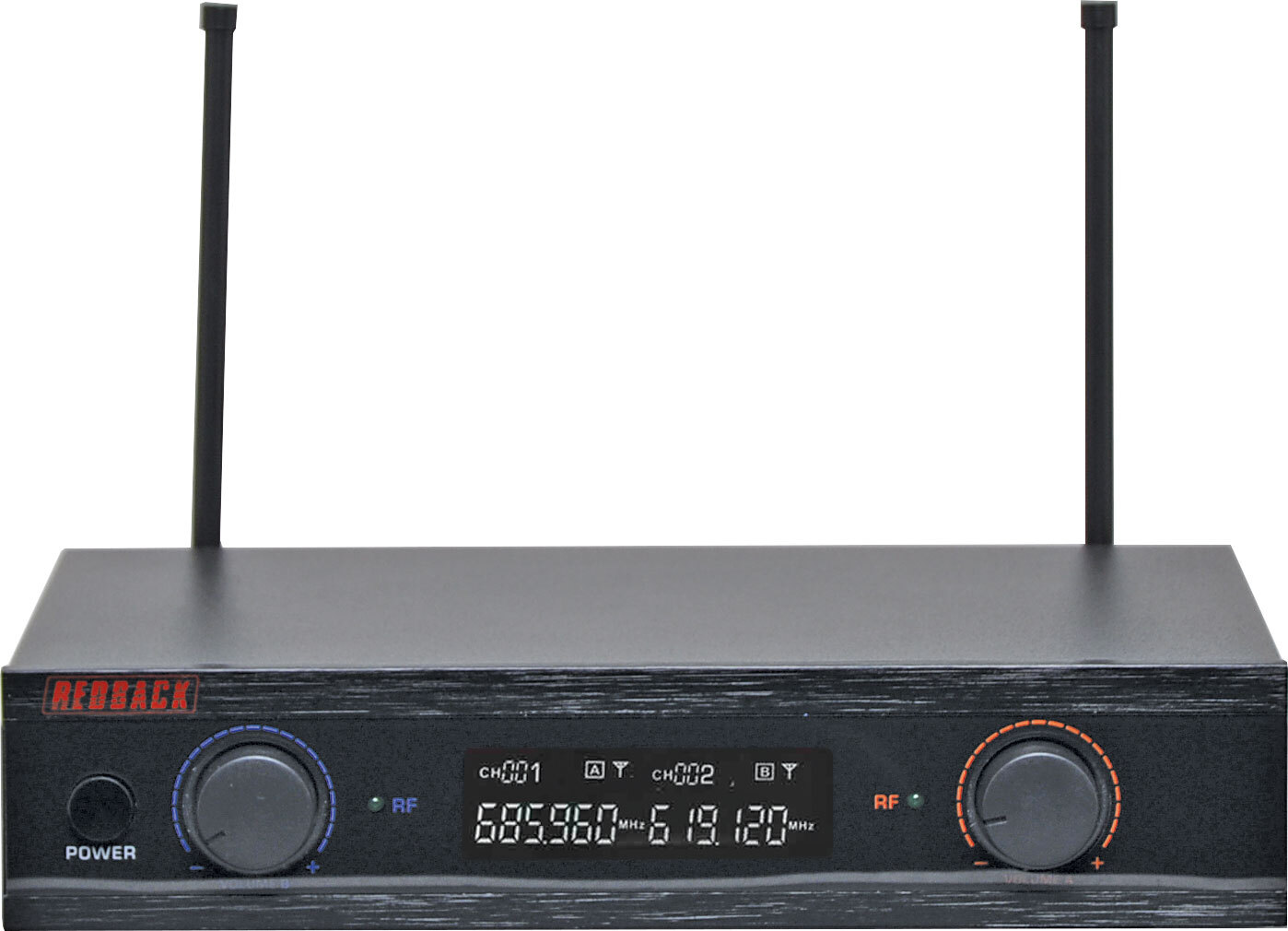

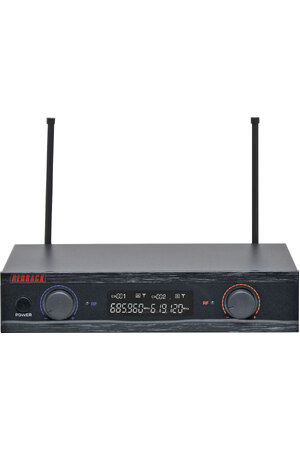

• Operating frequencies 520 / 524 MHz
• RF signal presence indicator LEDs for channels A and B
• Range of up to 60m in ideal conditions open air

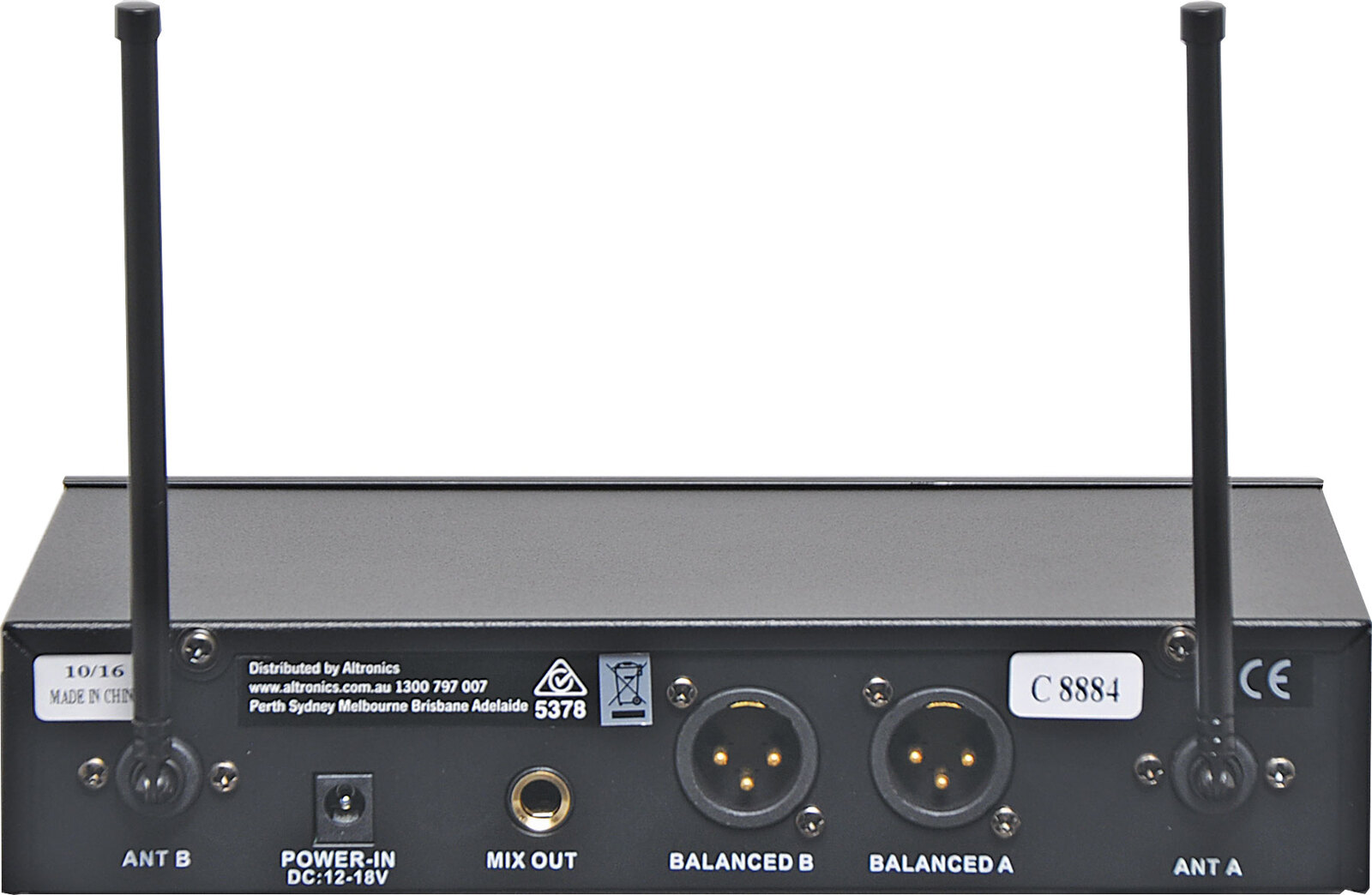

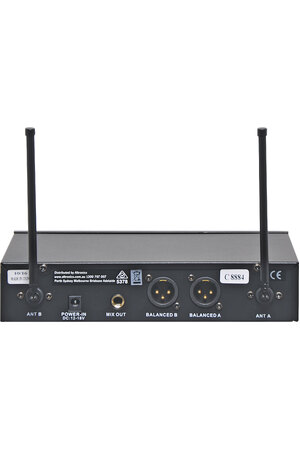

• 6.35mm unbalanced line mix output
• 3-pin balanced XLR mic output for channels A and B
• Screen shows parameters for both channels
• Plug pack included
• 4 x AA batteries included

Specifications

• Receiver
• Frequency Range: 520 + 524 MHz fixed UHF
• Audio Output: Balanced Max output +5 dBu
• Power Supply: 12-18 V DC
• Power Consumed: 150 mA @13.5V DC
• Receive Sensitivity: <-90 dBm
• Handheld Transmitter
• Frequency Range: 520 + 524 MHz fixed UHF
• RF Power: 10 mW
• Battery: 2 x AA size battery (1.5V each)
• Frequency Response: 50 - 20,000 Hz
• Input Sensitivity: 2.1 mV/Pa
• Power Consumed: 100mA @3V
• System
• T.H.D. (Overall): < 0.1 %
• Signal to Noise: = 96 dB (A)
• RF frequency range: 520 + 524 MHz fixed UHF
• Modulation: DQPSK
• Bandwidth: 300kHz
• Dynamic Range: >90 dB (A)
• Audio sampling: 24 bit/48 kHz
• Transmission system: PLL synthesised
• Audio Delay: 3 ms
• Audio Encoder: PT Live
• Frequency Response: 20 - 20,000 Hz
• Working Distance: up to 60m

*Specifications are subject to change without notice.
