Redback Public Address Amplifier (PA) 250W 6 Input

Part of the series PA Amplifiers.

View all products in this series

---

Designed for applications requiring up to six microphone inputs, without compromising output power and overall performance. Each model features inputs which can be configured for either microphone or line level operation.  Bass/treble controls, phantom powering and adjustable input sensitivity enable unparallelled flexibility for a wide scope of applications such as factories, workshops, mine sites, sports clubs and office buildings.

Features

• 6 Balanced microphone inputs / 6 Aux inputs / 1 Music input
• Robust design incorporating latest Mosfet technology
• Very Low noise and distortion
• 100V standard with optional 70V and 4-16Ω outputs
• 240V AC or 24V DC operation
• VOX muting on inputs 1 and 2 (Switch selectable internally)
• Adjustable VOX level sensitivities
• Bass and Treble controls
• Tape Output
• Phantom power on microphone inputs (DIP switch selectable internally)
• Multi stage thermally cued fan cooling
• Output Peak Limited
• Thermal Overload protected
• Signal Presence Indicator
• Half power mode when overdriven
• Fault Indicators
• 24V DC Power Status Indicator
• Optional Alert/Evac module with voice over message for emergency tones (A 4573)
• Optional remote volume (With A 4373 Digital volume control module fitted and external A 2280B wall plate)
• Rack Mountable (suits 19 inch racks) with optional A 4376 rack ears

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 40 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.

Specifications

• Power Outputs
• Power: 250 watts RMS
• Distortion: < 0.5%, @ 1kHz
• Output line: 100V
• Frequency Response
• Mic inputs : 50Hz - 12kHz, -3dB
• Line inputs: 50Hz - 15kHz, -3dB
• Mic Sensitivity
• Mic inputs: 3mV
• Line inputs: 1V
• Music input: 500mV
• Signal To Noise Ratio
• Mic inputs: > 75dB below rated output
• Line Output600Ω balanced, 0dB , 3 Pin XLR

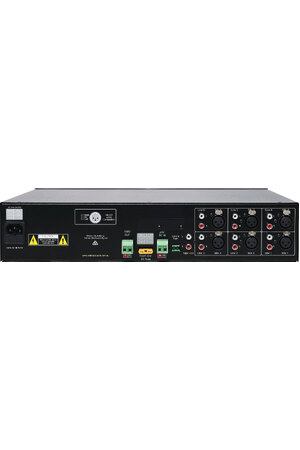

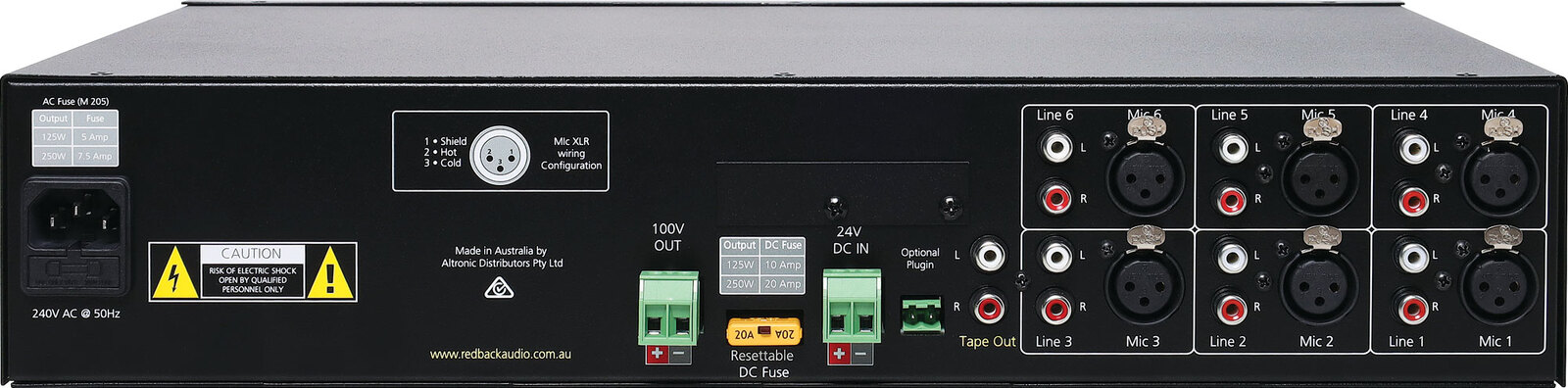

• Output Connectors
• Speakers: Screw terminals
• Input Connectors
• Inputs: 3 pin XLR balanced or 2 x RCA
• 24V DC power: Screw terminals
• 240V AC power: IEC power connector
• MutingPTT via microphone switch contacts and VOX muting (inputs 1-2)

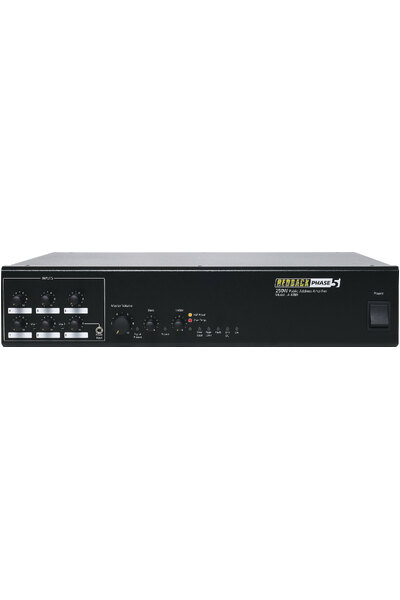

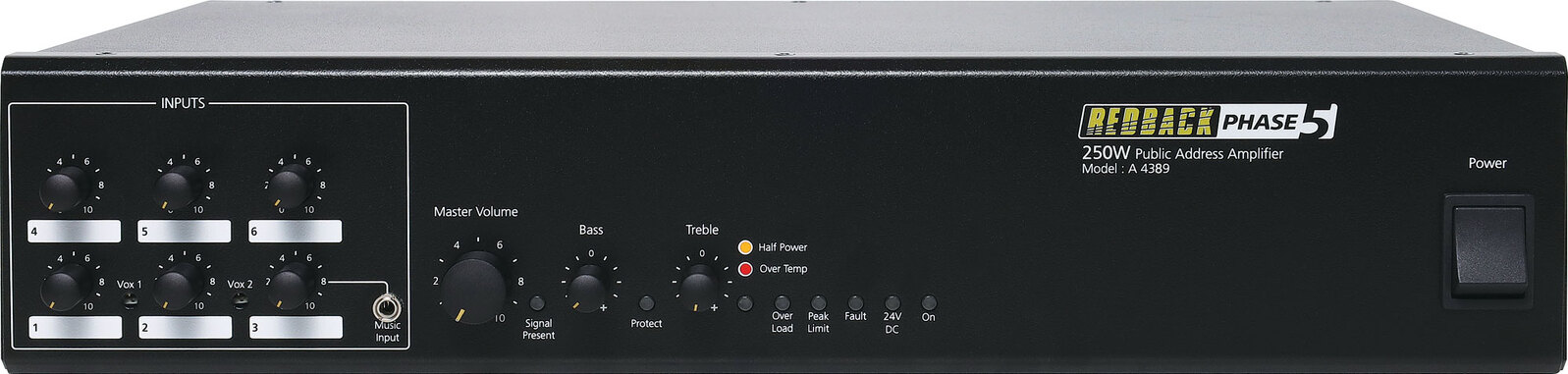

• Controls
• Mic/Line/Music inputs: Volume
• Power: On/off switch
• Indicators: Power, signal present, output peak limiting, over-temp , overload protect, half power, 24V DC
• General
• Power Supply: 240V AC or 24V DC
• Fuse Protection: 250W - 7.5A AC ,20A DC
• Dimensions: ≈483W x 300D x 88H
• Weight: ≈ 15.5kg
• Current Draw: Min ≈ 350 mA, Max ≈ 20A

*Specifications are subject to change without notice.
