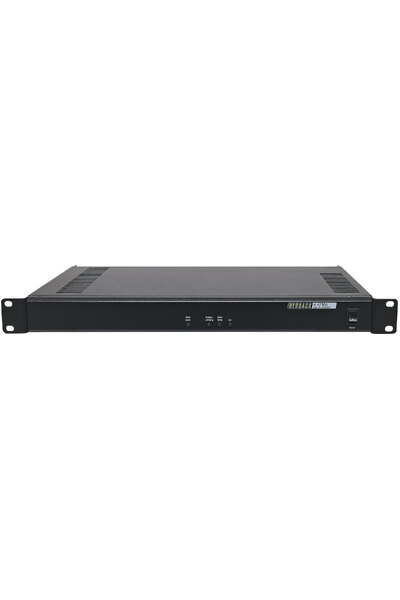

These compact 1RU rack mount amplifiers are suitable for both stand alone PA system use, or as zone amplifiers.

Availability: Available Usually Dispatched In: 2 - 5 Business Days Product Code: ALT-A4230A ISBN: 9321758242247 Brand/Publisher: Redback Categories: Professional Audio,

Part of the series PA Amplifiers.

View all products in this series

These compact 1RU rack mount amplifiers are suitable for both stand alone PA system use, or as zone amplifiers in
larger systems requiring local inputs. All models operate on 240V ac or 24V dc for battery backup operation.

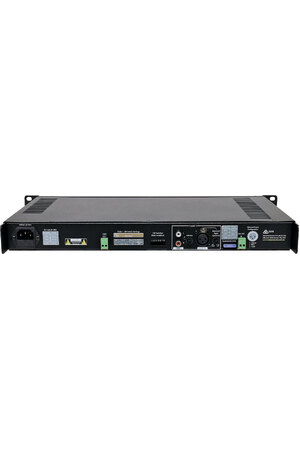

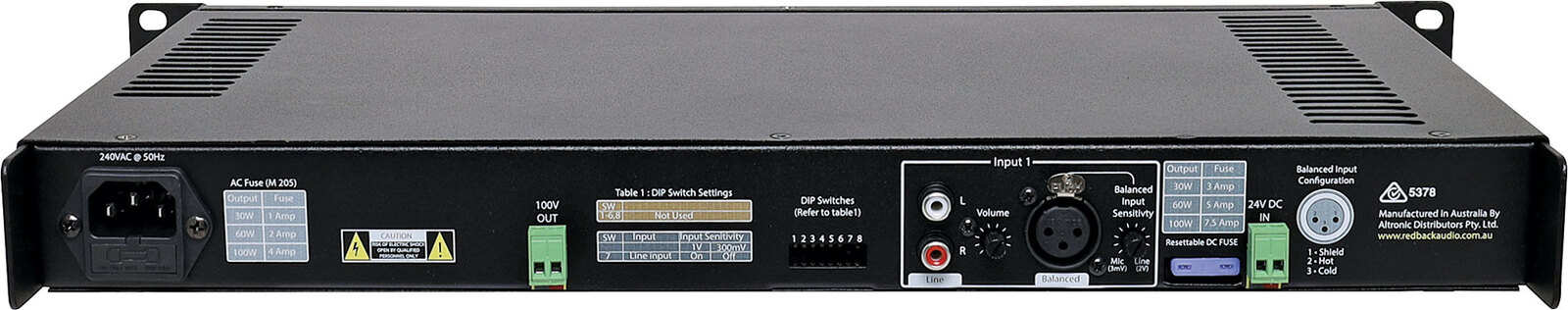

The input consists of a 3-pin XLR which can be set for either balanced mic level (3mV) or balanced line level (2V), adjusted
via a rear mounted trimpot. A dual RCA input is also provided with adjustable sensitivity of either 300mV or 1V.

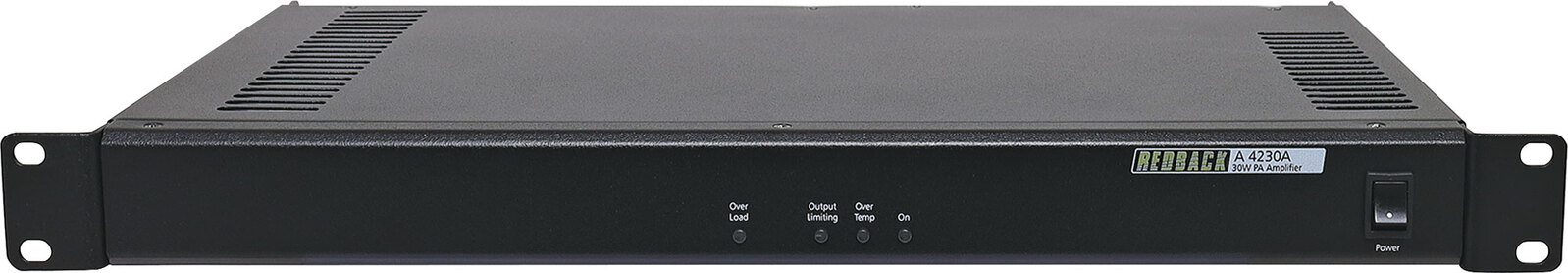

Phantom power is also provided on the input XLR. The circuit includes protection features in case of output over voltage, over current and over temperature. All are self re-setting once the fault condition is removed. Visual indication via front panel LEDs display amplifier status at all times.

Features

Compact 1RU 19" rack mount design
Balanced mic or line input
100V line output
Phantom power
Overload limiting
Over voltage limiting
On demand fan cooling (60W and 100W versions only)
Over temperature shut down protection
Dual input connectors
Variable input sensitivities
240V ac / 24V dc operation
Australian designed & manufactured

100% developed, designed & assembled in Australia.
Since 1976 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 45 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
