Part of the series Portable PA Systems.
View all products in this series

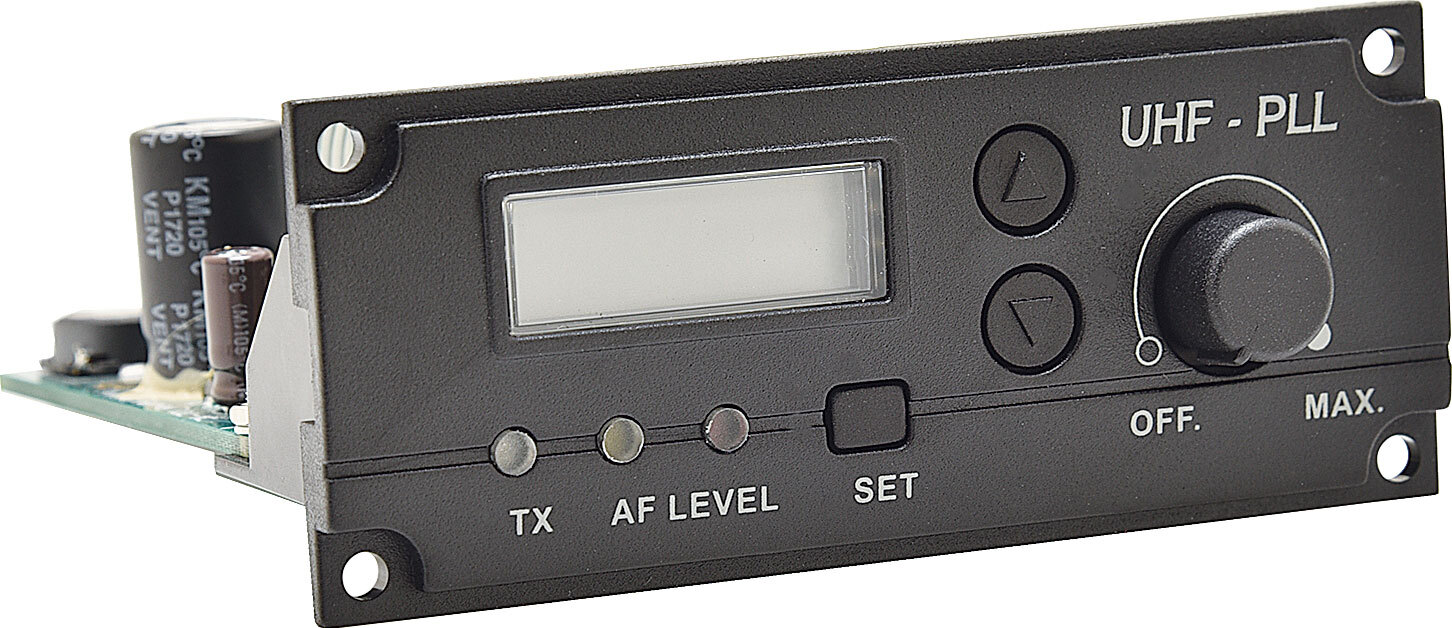

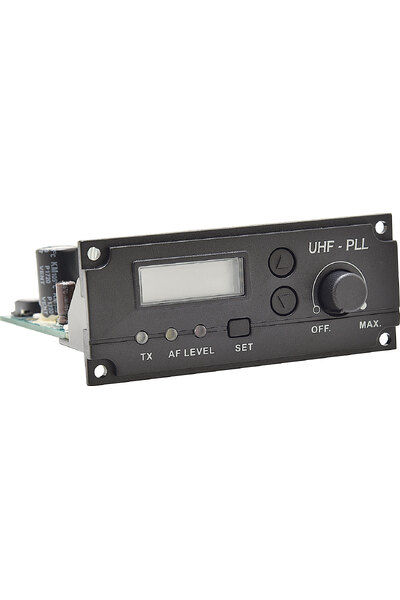

This Wireless Link Transmitter is an optional extra for the Okayo® Compact 40W and 80W Portable PA Systems. It operates on 520-544MHz, please check your system specification/model before making your purchase.
For larger venues or audiences, the addition of this module allows several units to be used in the same area without the need for speaker or signal wiring. In this application you have a master and as many slave units as required for the venue. The wireless link module is fitted to the master unit which then transmits any audio signal (including wireless mic, CD player or wired mic) to the slave units, which are fitted with a UHF wireless microphone receiver. This module can also transmit to the smaller 30W Okayo® systems.
Compatible with the following Okayo PA Products
C 7202C 80W Portable PA With 520-544MHz UHF Receiver
C 7344B 40W Portable PA With 520-544MHz UHF Receiver, MP3 & Bluetooth
C 7344C 40W Portable PA With 520-544MHz UHF Receiver, MP3 & Bluetooth
C 7310 Compact 40 Watt Portable PA System
C 7281A Wireless Link Desktop 520-544MHz UHF Receiver
Specifications
- Carrier Frequency: 520-544MHz
- Channels: 96 (frequency dependent)
- LCD Status: LCD readout, LED indicators
- Controls: Set Up, Down, Volume
- RF Output: 10mW
- Spurious Emission: <250nW
- Antenna: In-built
- Frequency Response: 70Hz - 16kHz
- Wireless Coverage: 50 - 70m
*Specifications are subject to change without notice.
Downloads
InstructionsSKU | ALT-C7203C |
ISBN | 9321758184202 |
Publisher | Okayo |
Product Type | PA Equipment, |
